product details / scope of delivery
Description:

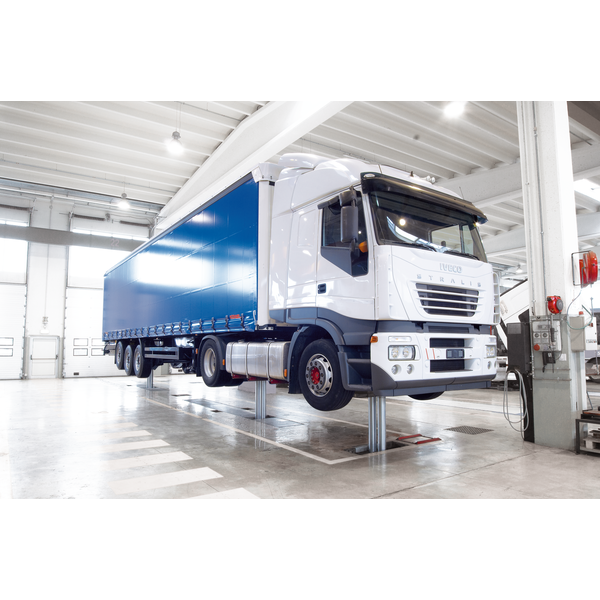

Multi-post system with three lifting units, two of which are
moveable, with surface-mounted vehicle support and
narrow roller cover; modular design
- Flexible and custom-selectable post distance thanks to modular designof individual installation boxes
- Torsion protection through rigid dual post system
- Optimal operational safety thanks to redundant system with two separate hydraulic circuits and additional electronic pressure/leakage monitoring as standard
- Corrosion-resistant hydraulic piston; self-lubricating as piston dips into hydraulic oil with every lift
- Optional use of biodegradable mineral-based oil with long service life
- Space-saving medium-pressure hydraulic unit, mounted on the lifting units, travels with the moveable lifting unit (no hose routing or movement within the installation box)
- Low-noise operation thanks to ultra-quiet motor in the installation box
- Robust roller cover systemwith electric travel drive, made from pivot bearing aluminium profiles with non-slip surface
- Narrow roller cover with surface-mounted support, can be driven over with wheel loads of up to 4.0 t
- Electronic synchronous control oflifting units for uniform vehicle lifting (as per EN 1493), independent of varying vehicle pick-up point heights, and with robust inductive height sensor system
- Two operating panels (incl. text display) for easy operation of central control and programming unit when moving the lifting units / lifting the vehicle
- High operational flexibility through different operating modes, including group and individual options, enables efficient work performance
- Position memory programme allows pick-up positions of up to 40 vehicles to be stored and recalled at any time
- Cable-connected remote control facilitates and speeds up exact positioning of vehicle take-up (20 m cable)
- Simple, integrated,pneumatically operated emergency lowering function; also usable in cases of power failure
Scope of delivery:
- Three lifting units, two of which are movable, with S roller cover
- Support crossbar in anthracite grey (RAL 7016)
- 1 setof vehicle support sliders for forged axles with synthetic overlay (VZ 972343)
- 2 sets of hinged vehicle support sliders, height 220 (280) mm (VZ 972340)
- Control cabinet and portable operating panel
- Pre-assembled cable harnessesper lifting unit, length 30 m
- Wiring and mounting materials
- Installation box/installation frame not included
- Lockable main switch
- Operating instructions
- CE declaration of conformity
Downloads
Sales documents
Brochures | ||
---|---|---|
Brochure TRUCKLIFT
|
||
Brochure (Printable version) TRUCKLIFT
|
Technical Datasheet | ||
---|---|---|
Technical Datasheet TRUCKLIFT 3/2 RS 14.0
|
||
Technical Datasheet (Printable version) TRUCKLIFT 3/2 RS 14.0
|
Technical documentation
Operating Instructions | ||
---|---|---|
Operating Instructions ES DUAL
|
Technical Data
Technical data:
CE load capacity | 42000 kg |
Load capacity per lifting unit | 800 - 14000 kg |
Max. lifting height | 2050 mm |
Sliding post / fixed post | |
installation depth | 2523 / 2723 mm |
Moveable lifting unit travel range | 4020 mm |
Support cross-beam width | 1000 mm |
Post diameter | 2 x 125 mm |
Roller cover traversable with wheel load | 4000 kg |
Roller cover width | 630 mm |
Roller cover material | Aluminium |
Lifting time / lowering time, | |
load-dependent | approx. 60 / 60 s |
Hydraulic oil volume (not included) | approx. 195 l |
Operating pressure | 70 bar |
Control unit (H x W x D) | 800 x 800 x 300 mm |
Drive power | 13.0 kW |
gG Fuse | 35 A |
Power supply | 3/N/PE 400 V 50 Hz |
