product details / scope of delivery

Description of the MBT 6200 LON:

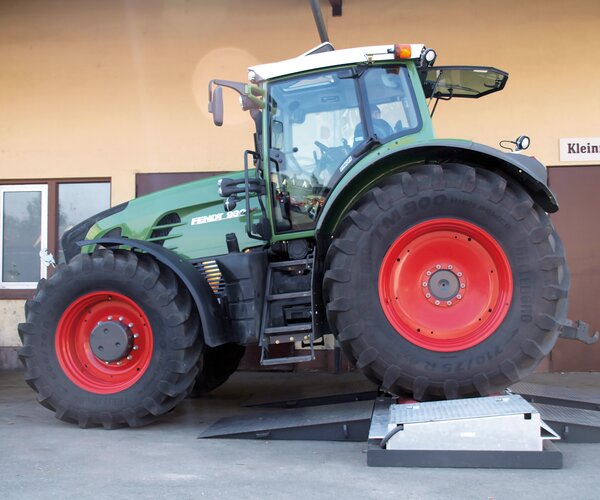

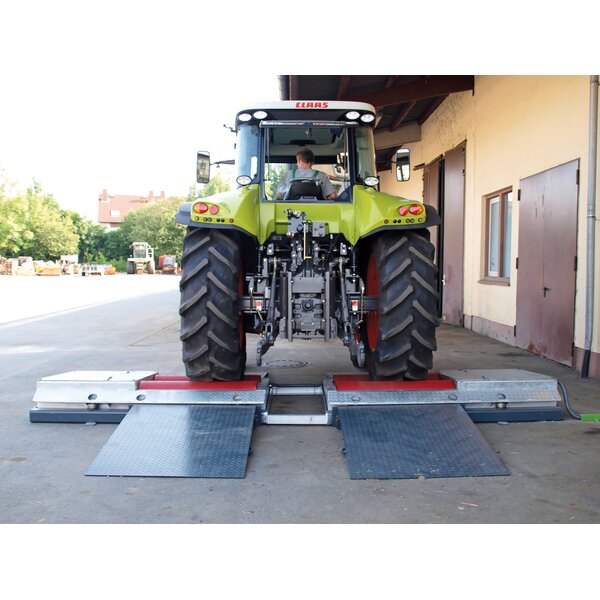

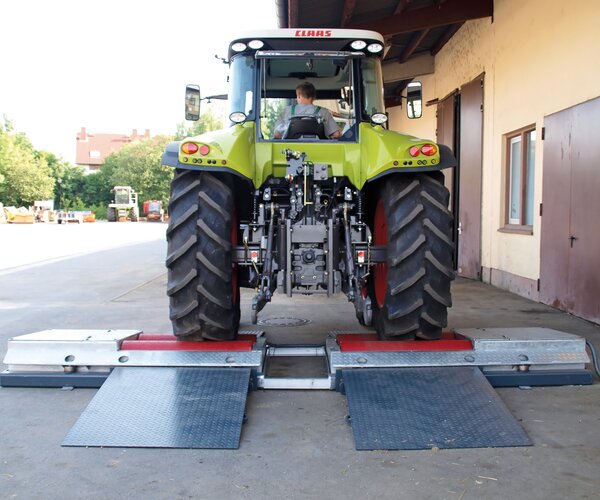

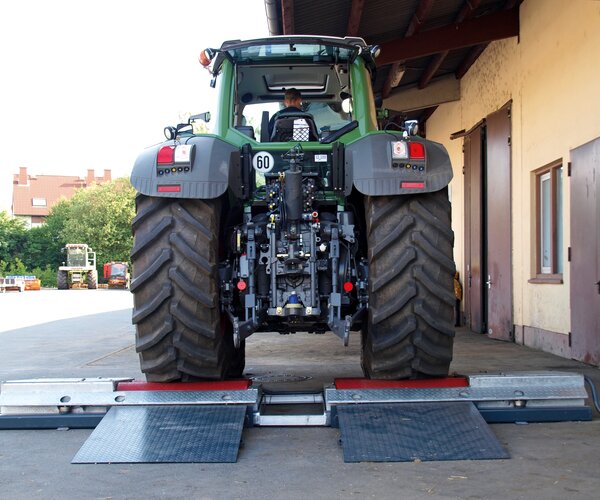

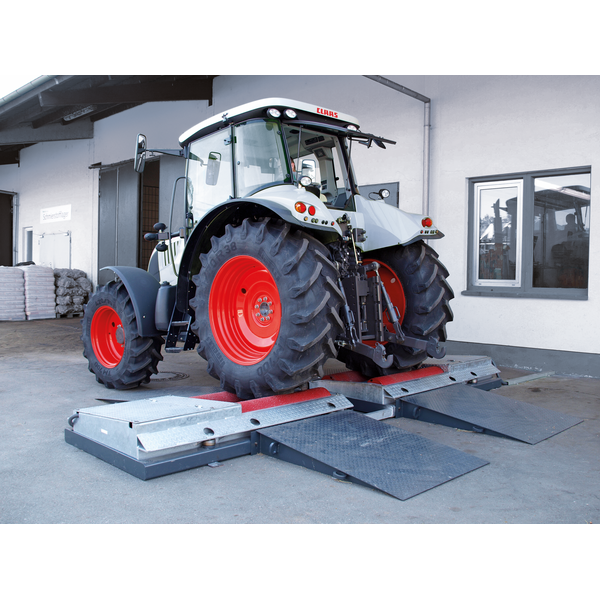

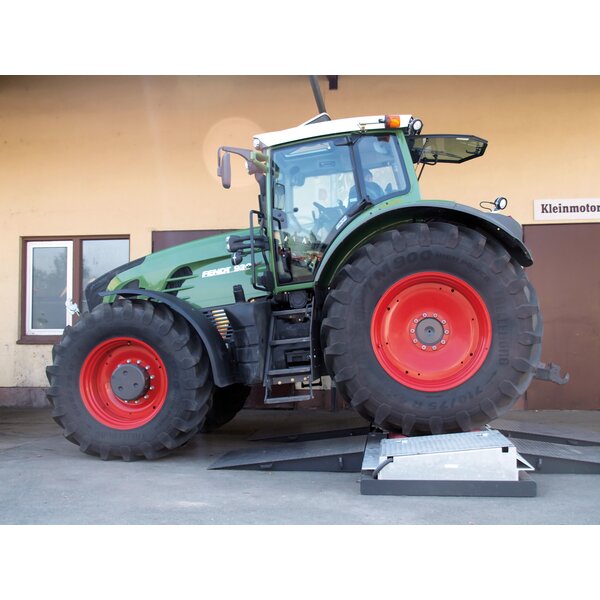

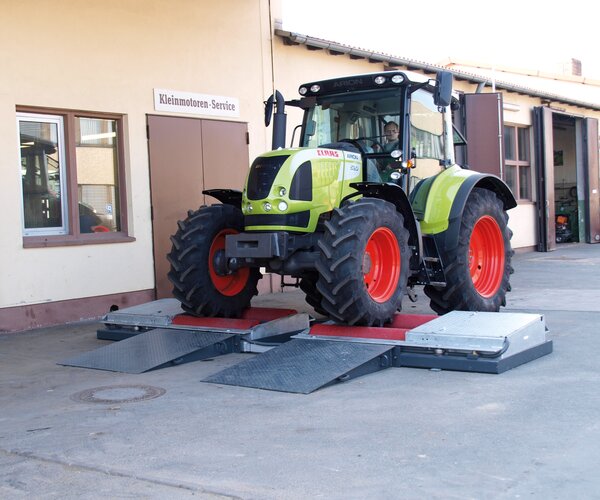

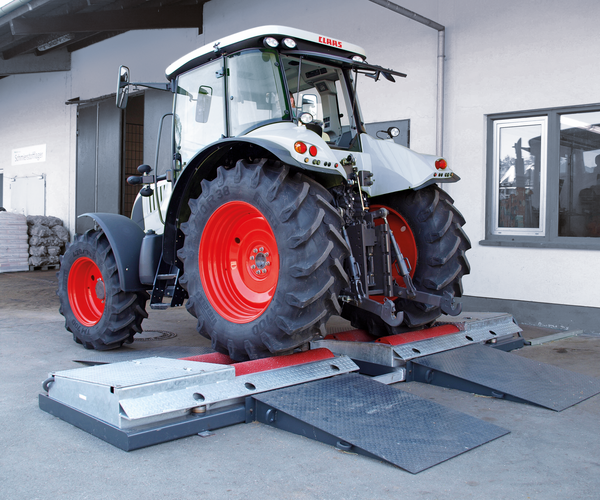

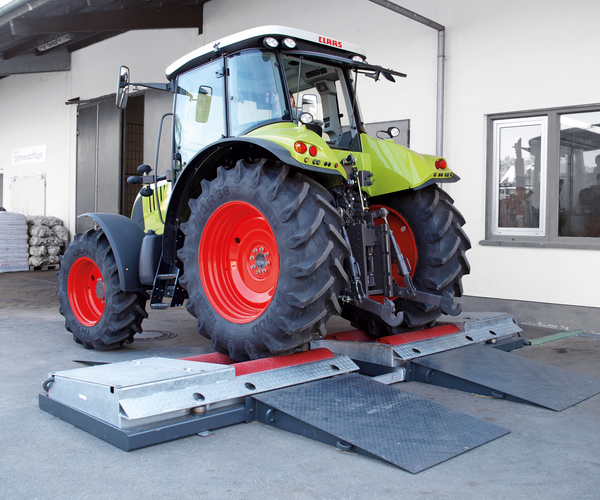

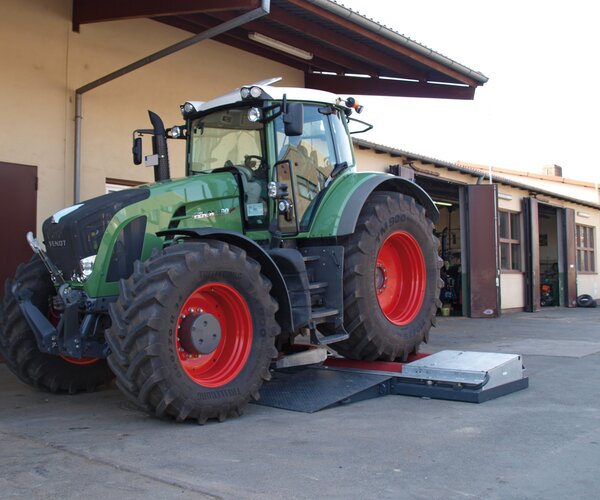

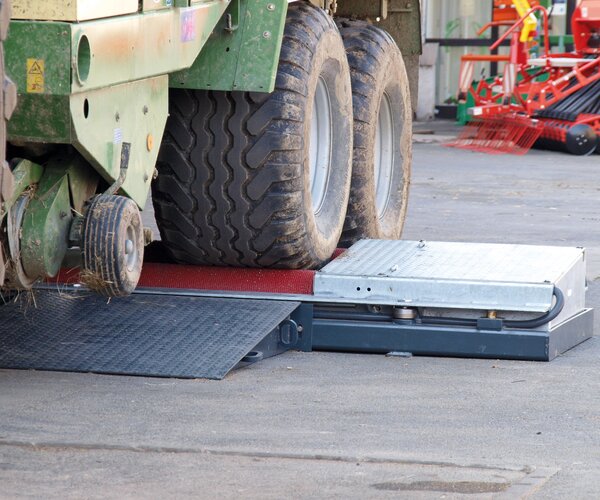

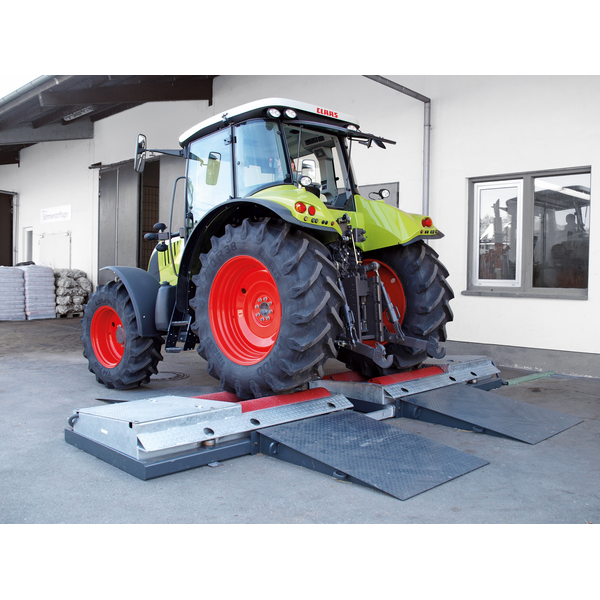

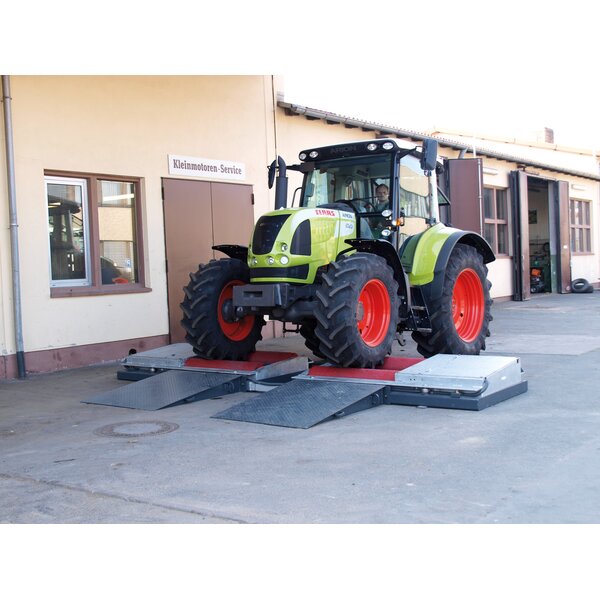

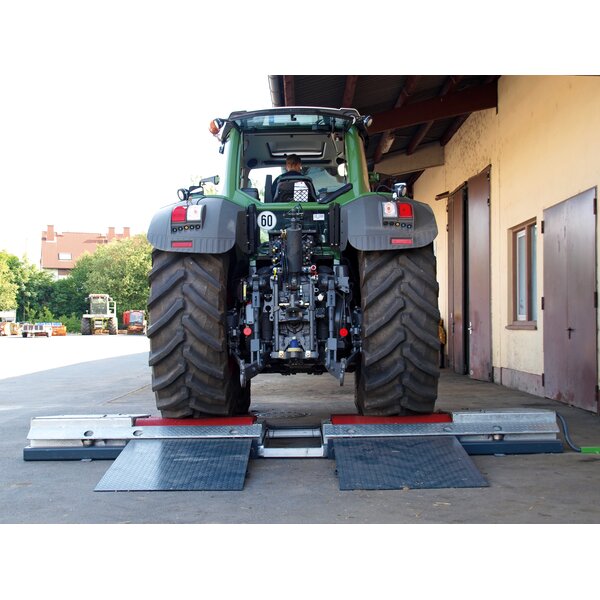

Roller brake tester, particularly for agricultural vehicles
and special vehicles with an axle load of up to 18 t

  • The large roller axle distance means it is designed particularly for agricultural vehicles or special vehicles with large wheel dimensions.
  • The considerably elevated test rollers prevent the wheel from jamming on the frame, even when testing vehicles with low-pressure tyres
  • DC brake supplied as standard makes it easier to drive on and off with the axle driven by the vehicle.
  • Multi-analogue display with two pointer indicators

(Diameter: 2 x 350 mm)
- Measured value display0 - 4 kN / 0 - 40 kN

  • Display option for:
    • Brake tester
    • Wheel arch tester
    • Shock absorption tester
  • Difference display (three-digit + LED bar) for displaying:
    • Difference in braking force in %
    • Difference in shock absorption in %
    • Deviation in wheel arch in m/km
    • Results evaluation using additional coloured LED bars
    • User guidance using alphanumerical display
  • Program control using 32-bit microprocessor electronics

enables the finest resolution for the measurement results
Dimensions of display (H x W x D)910 x 870 x 300 mm


  • Comprehensive package of functions for professional testing, such as:
    • Delayed automatic switch-on after entering the tester
    • Automatic start-up monitoring supplied as standard to avoid tyre damage
    • Automatic slip cut-off with pointer stop and automatic restart already included as standard
    • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
    • Automatic cut-off after exiting the tester
    • Single-wheel switching for differentiated consideration of each wheel


  • Robust and long-lasting design due to:
    • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
    • Roller surface welded
    • Optional, free plastic coating on the test rollers
    • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
    • Lockable main switch
    • RS 232 interface connection
    • Splash-proof motors work reliably, even under high-stress environmental influences
    • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
    • Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt [German Transport Gazette]
    • Star-delta circuit to avoid high inrush currents
    • Centre cover between the roller sets

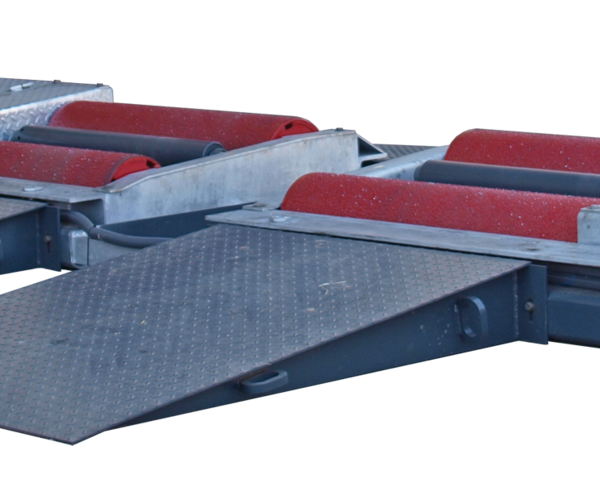

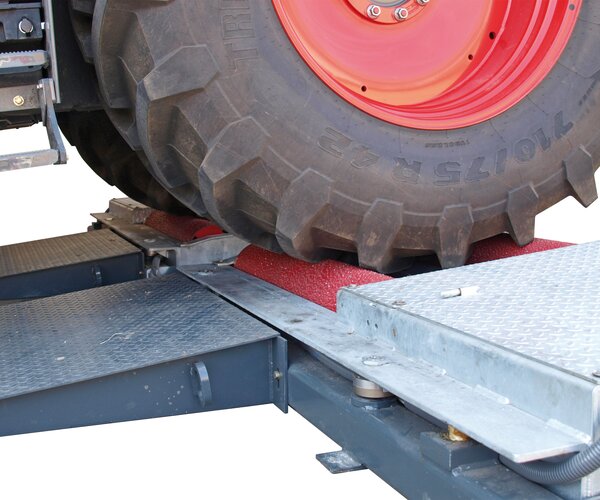

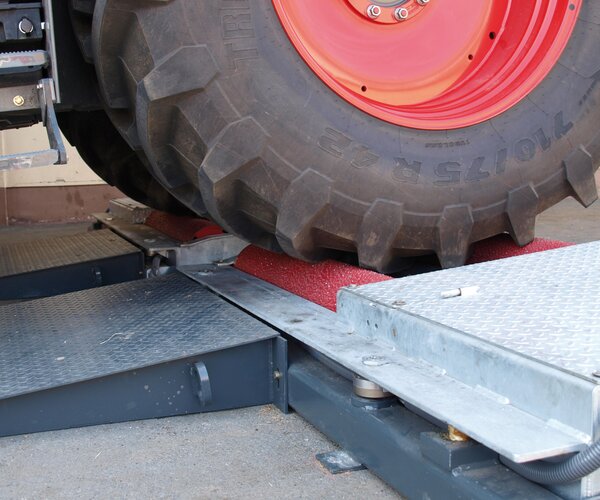

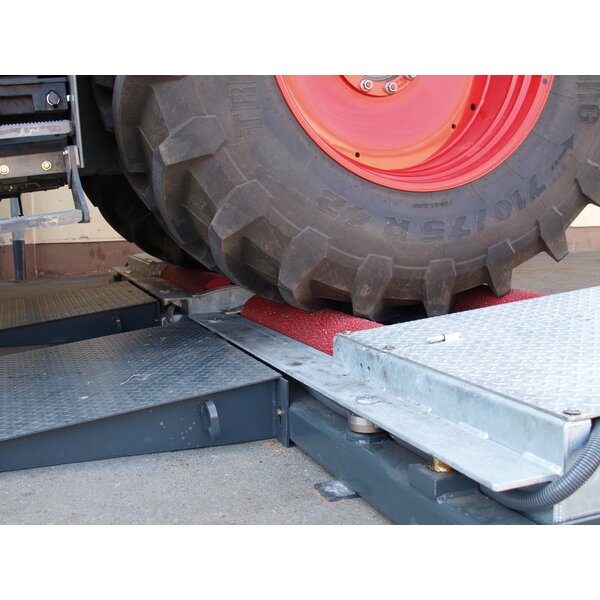

    • RS 1 roller set design with motors on the side

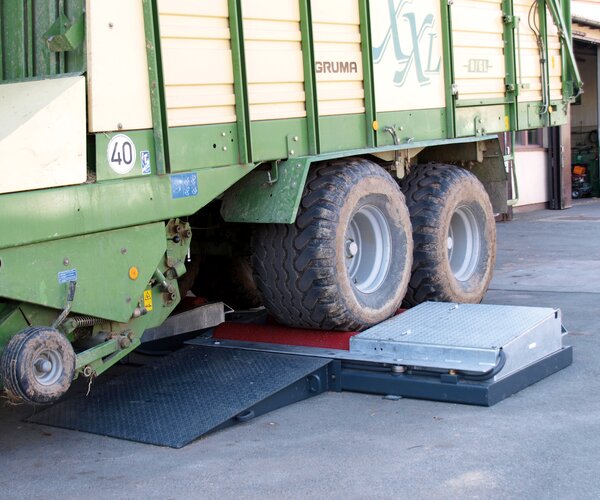

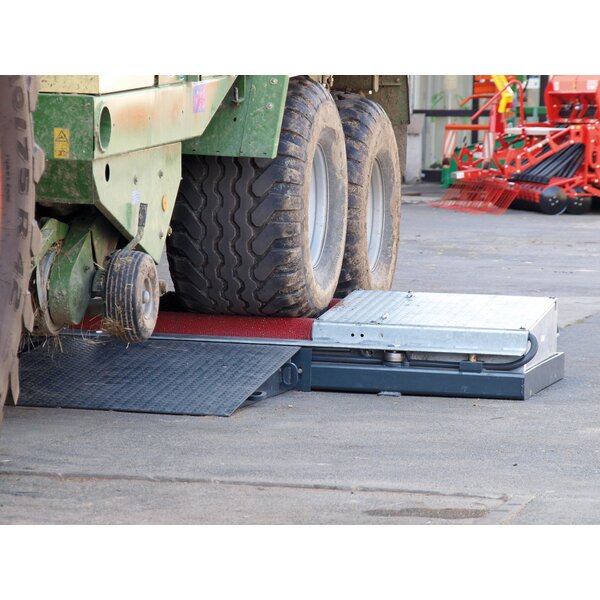

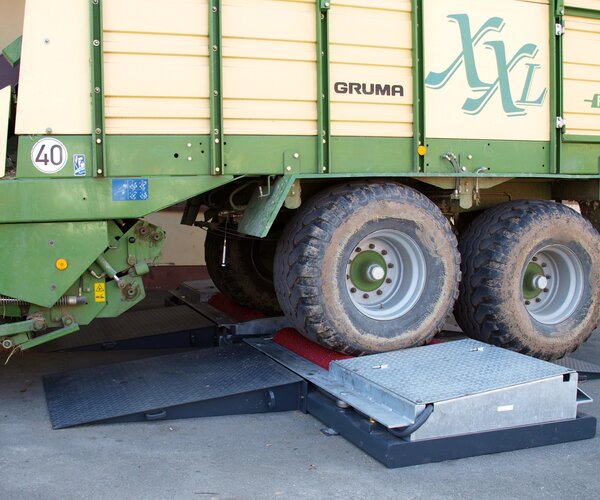

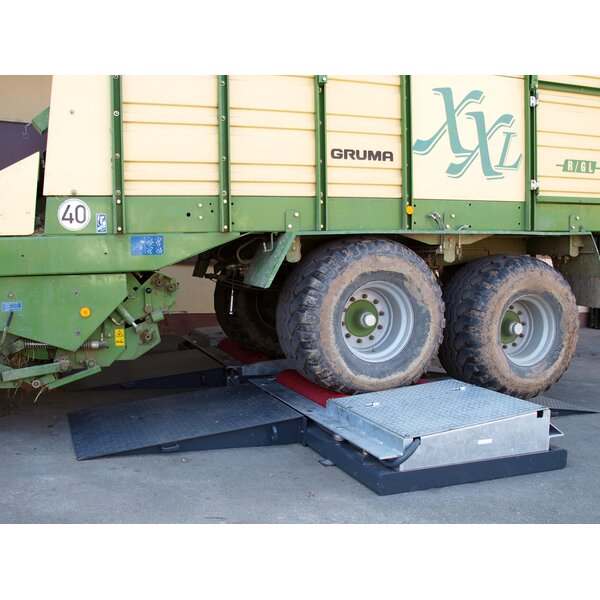

    • Rear roller elevated by 50 mm - guarantees highly precise measurement results, particularly for trailer axles.
    • Self-supporting divided roller set
    • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Scope of delivery:

  • Analogue display with two pointer indicators and an integrated switch cabinet
  • MBT 6000 RS 1 roller set with preparation for weighing equipment

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Technical data:

Axle load (can be driven over)18000 kg
Min. track400 mm
Max. track3600 mm
Drive power2 x 11 kW
Test speed3 km/h
Roller length1600 mm
Roller diameter265 mm
Roller axle distance685 mm
gG fuse63 A
Power supply3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H)5580 x 1340 x 370 mm
