Description:

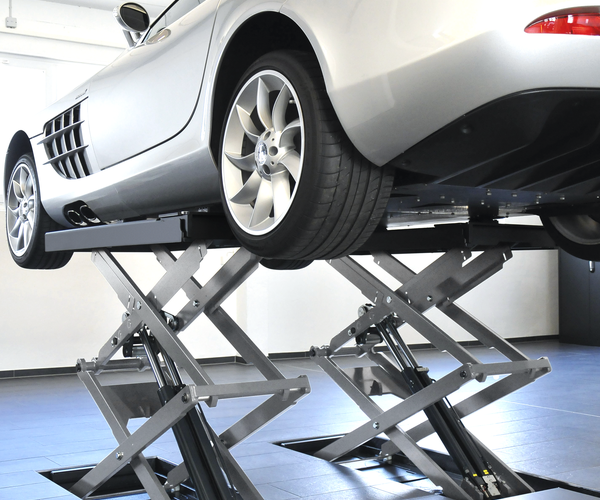

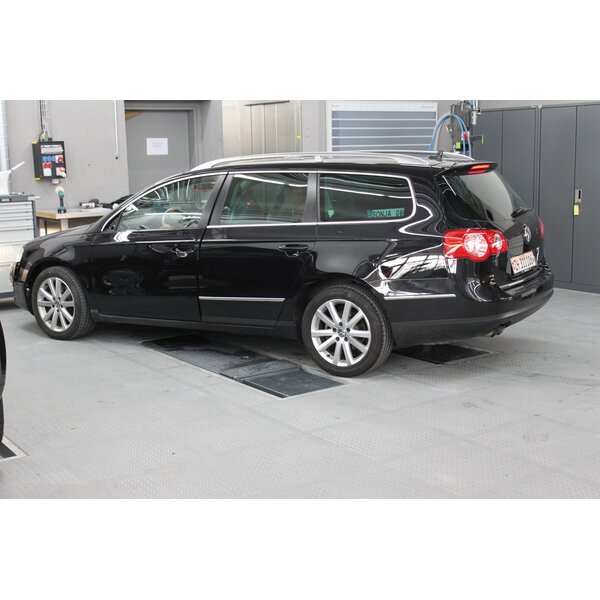

  • Double scissor lift for in-ground installation to make driving over the lift easier, without protruding components in the lift area

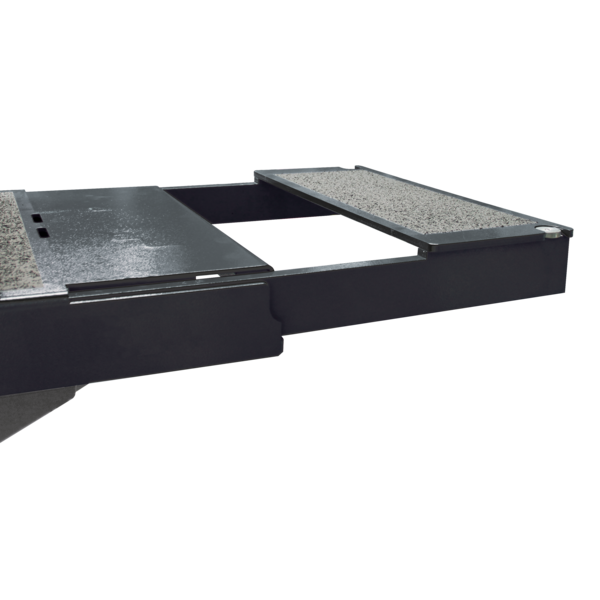

  • High level of operating comfort due to continuously adjustable support plate length, no subsequent pushing of the vehicle required

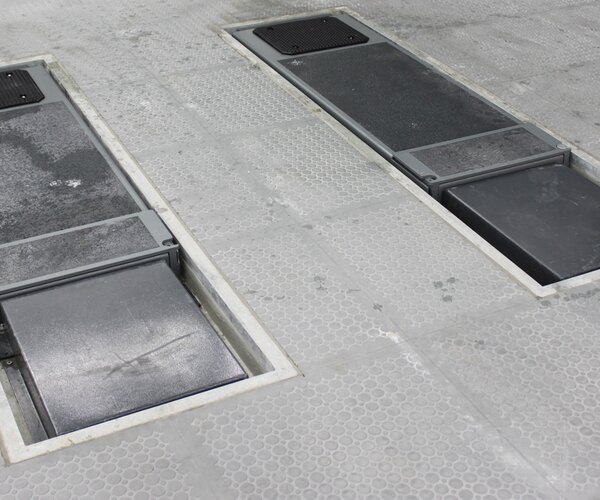

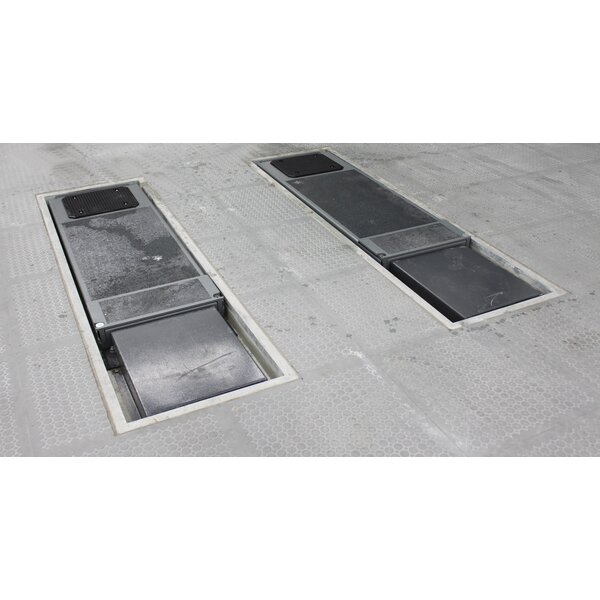

  • Foundation inserts for extending the support plates when the lift is retracted prevent time-consuming raising during set-up and time-consuming intermediate stops during retraction
  • Support plates and pull-outs granule-coated for optimum protection against vehicle slippage
  • Double the safety due to two redundant cylinders on each side of the scissors
  • No compressed air required to operate the lifting platform
  • Full lifting power even from the bottommost lifting height range thanks to innovative cylinder lift-out support
  • Quiet setting in the lowest position due to lowering delay installed as standard
  • Soft start from the lowest position for gentle attachment to the vehicle
  • High level of lateral stability due to generously sized scissor arms
  • No mechanical connection between the scissors, so no trip edges
  • Simple EMERGENCY OFF function in the event of power failure
  • Varnished with high-quality powder coating:
    • Anthracite Grey, RAL 7016 (Support Plates, Base frame)
    • Window Grey, RAL 7040 (Scissors, Control Desk)
    • Base frame with dual-layer powdered varnish boosts corrosion-resistance


  • Fully automatic synchronisation of support plates and high level of safety due to cylinder distance measurement system ("linear absolute measurement system")
  • Crushing / shearing protection due to CE stop


Scope of delivery:

  • Double scissor lift, type: TWIN F IV 3.5 U
  • Foundation inserts
  • Hot dip-galvanised shim plates for ground frame
  • Operation desk, upright, with controller and hydraulic unit
  • Lockable main switch Hydraulic hoses for 2 m distance between platform and unit
  • Operating manual and test log
  • EC CE conformity instructions
  • Transport packaging

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Technical data:

CE load capacity3500 kg
Max. lifting height (from floor)1815 mm
Lifting / lowering time, load-dependentapprox. 35 / 35 s
Installation depth115 mm
Width of support plates605 mm
Length of support plates1550 - 2100 mm
Total width of foundation (recommended)2000 mm
Drive power2.2 kW
Operating pressure270 bar
Power supply3/N/PE 400 V 50 Hz
gG fuse16 A
Weight including packagingapprox. 900 kg
Packaging dimensions (L x W x H)2100 x 760 x 710 mm
Hydraulic oil volume (not included)approx. 9 l
