product details / scope of delivery

Description:

  • Compressed air supply/shock absorber

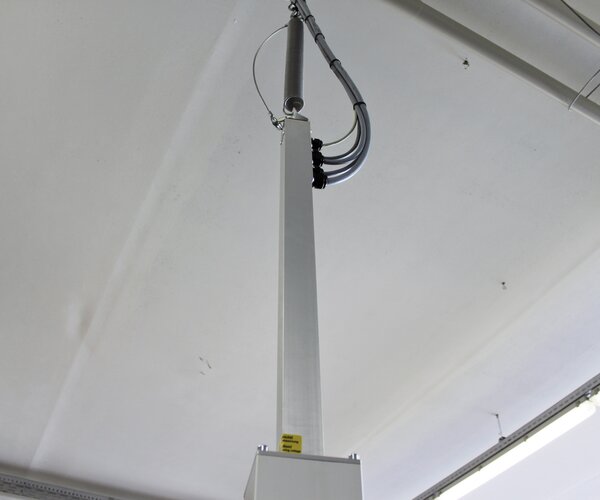

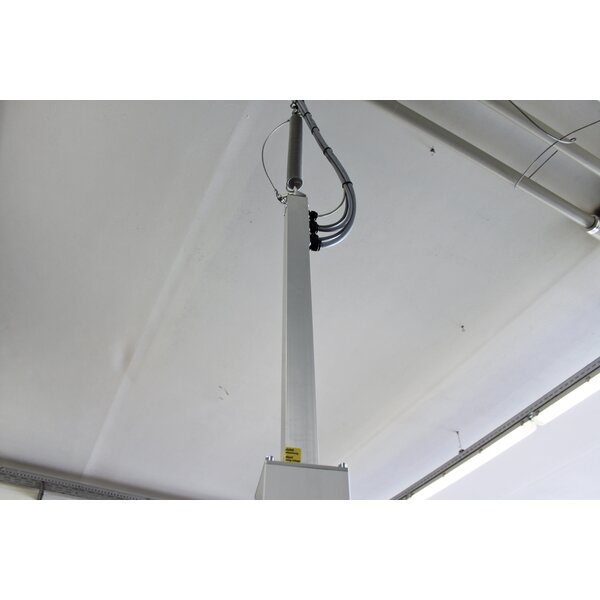

  • Compensating spring with safety rope
  • Edges with protective rubber

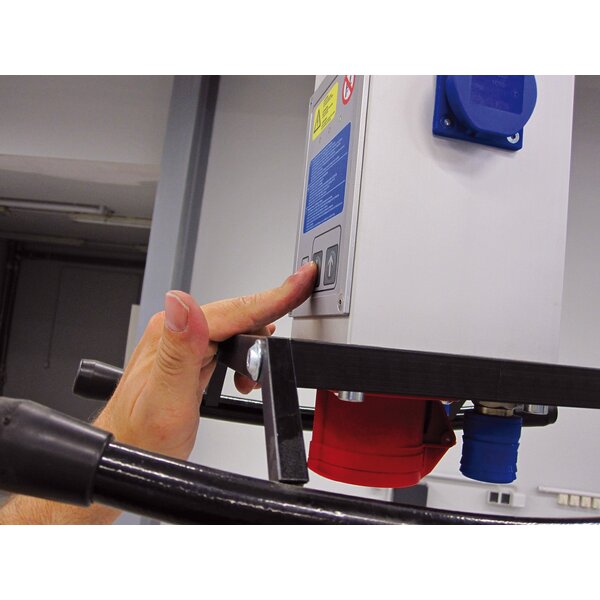

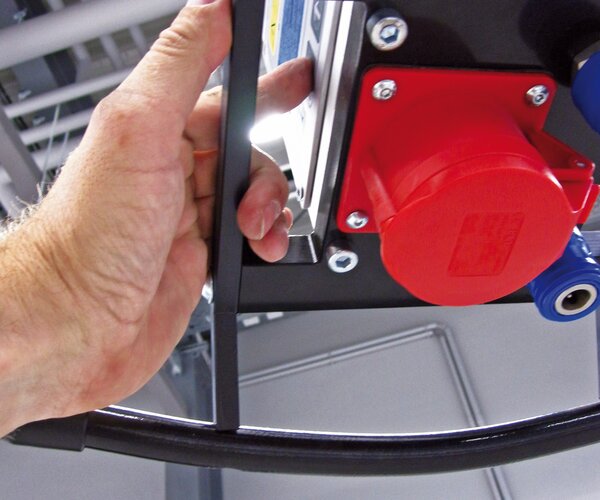

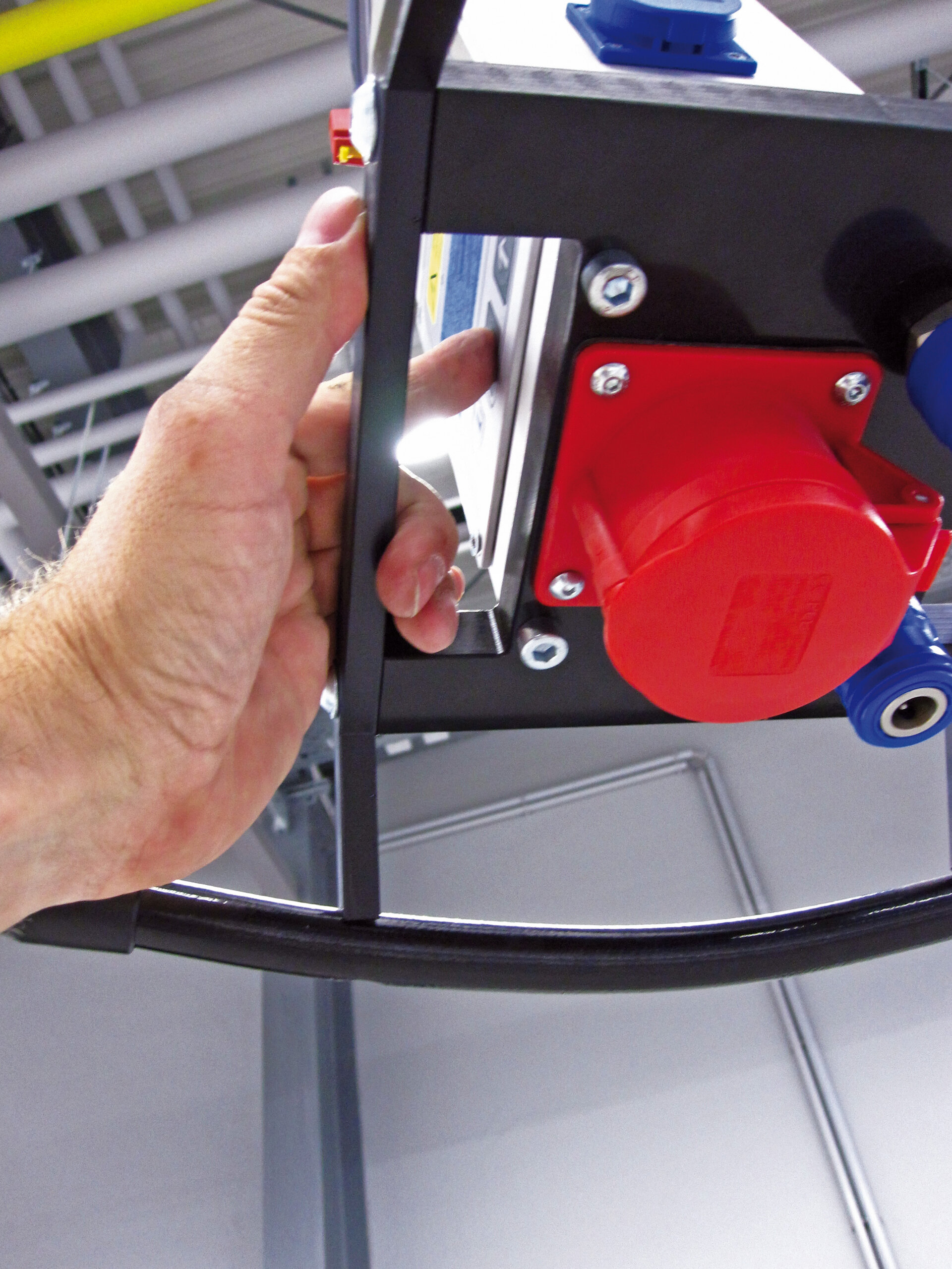

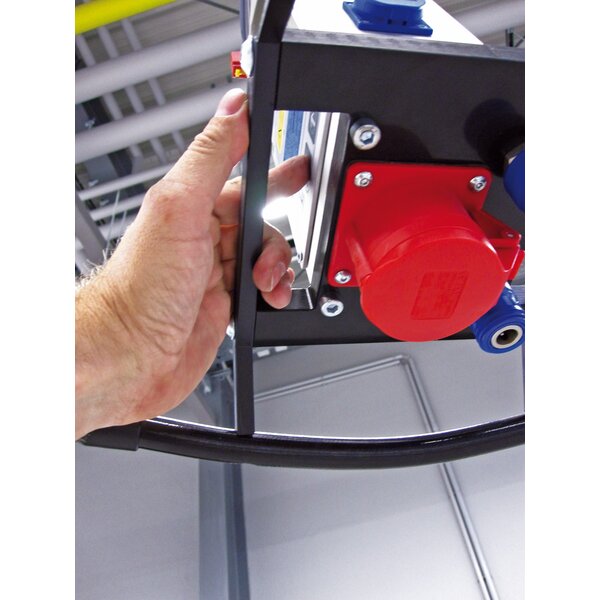

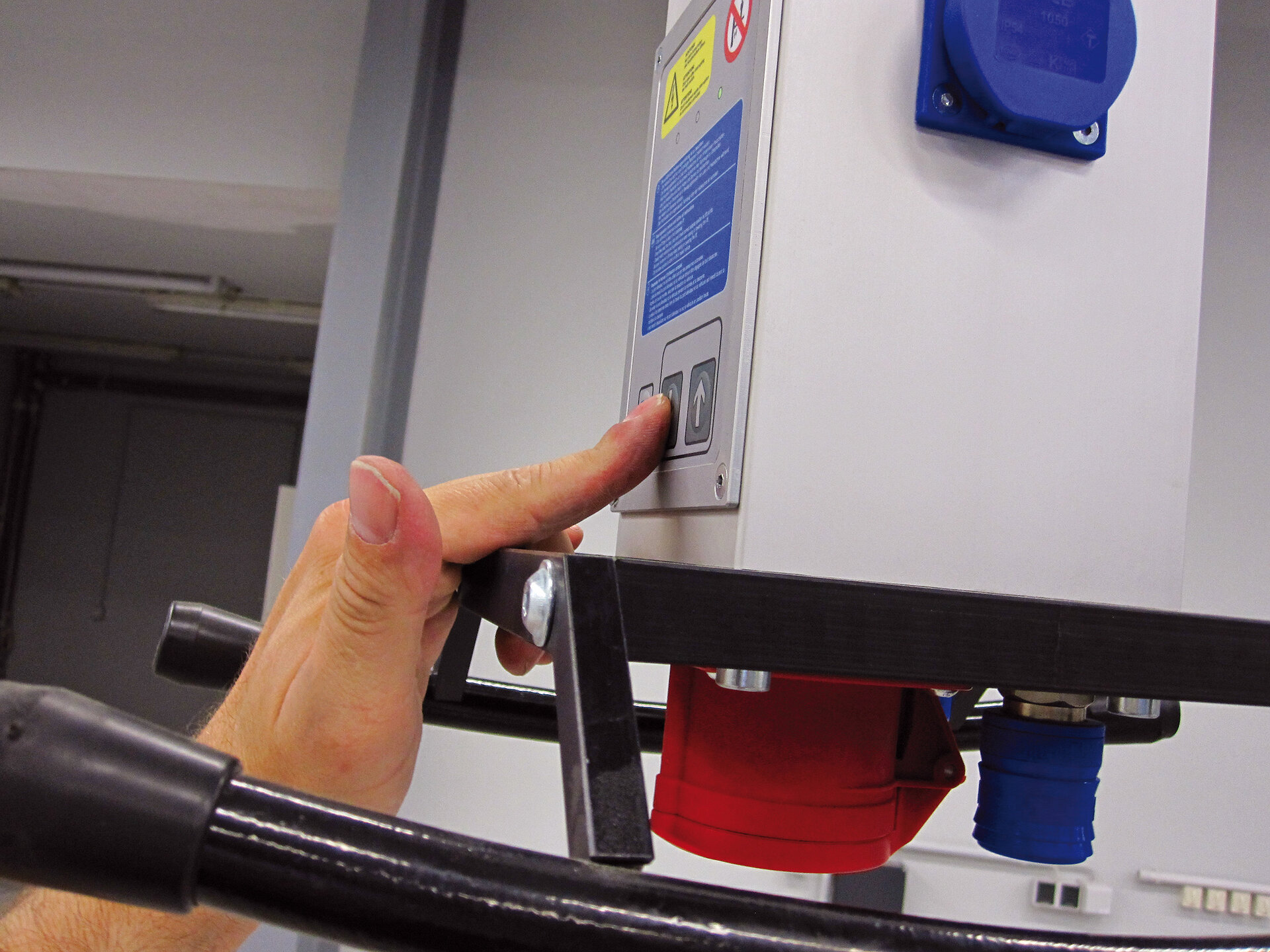

  • Hand grip to pull the E-Box up

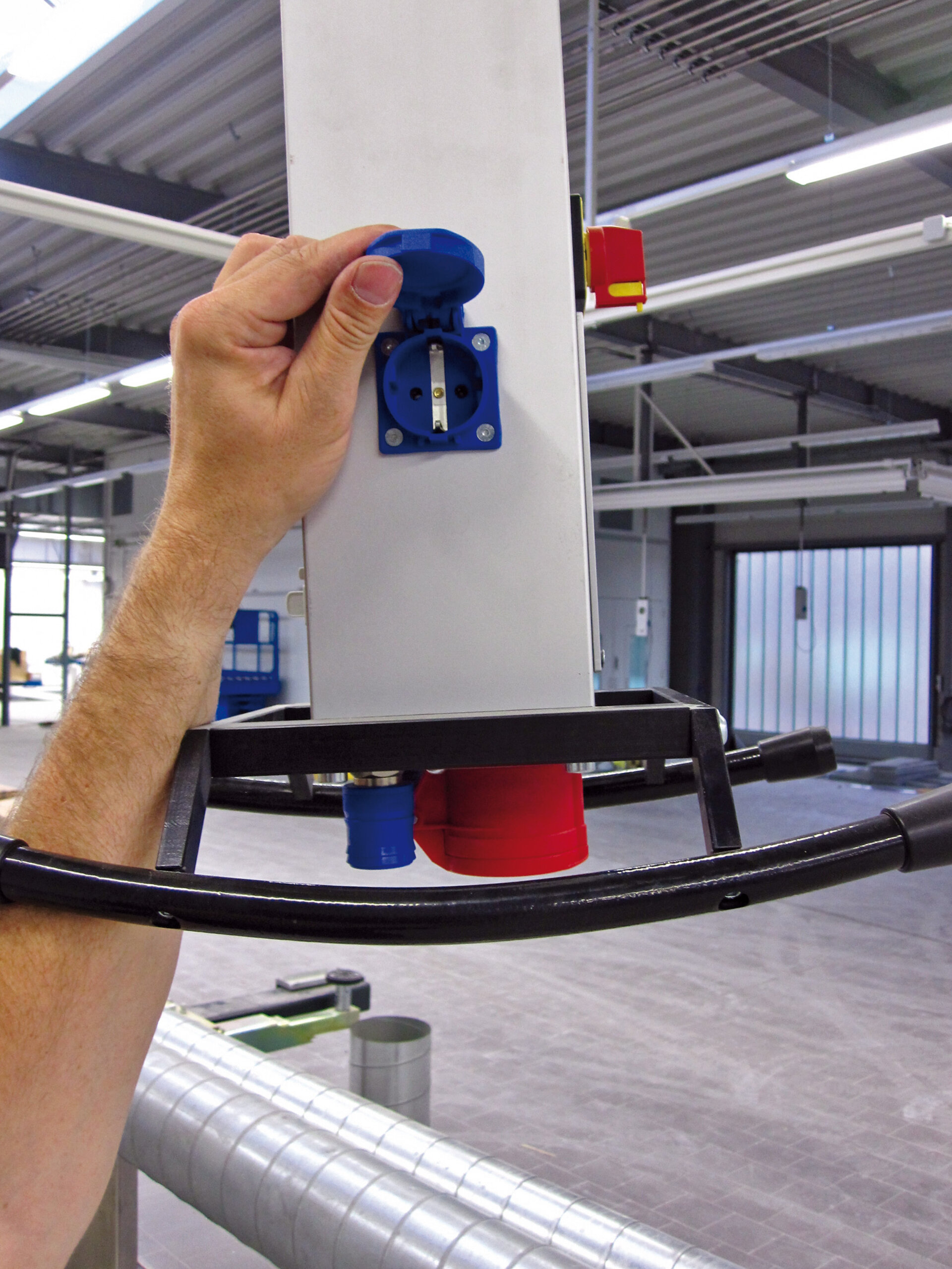

  • Sockets including cabling with 5 m cable

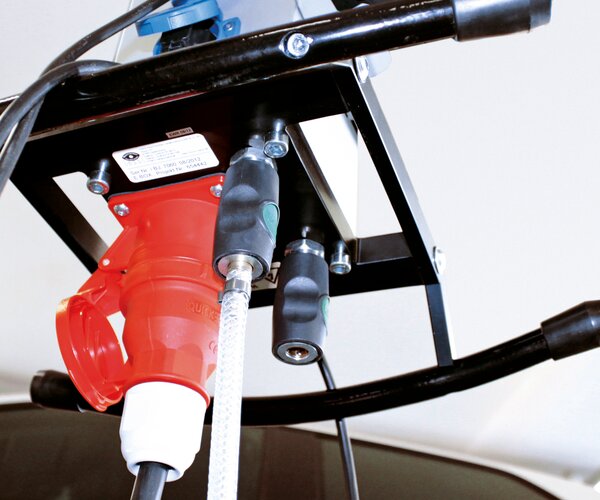

  • Compressed air connection thread 3/8"
  • Colour: anodised aluminium, black fittings, plastic/aluminum


Standard delivery:

  • E-Box 5 m cable set

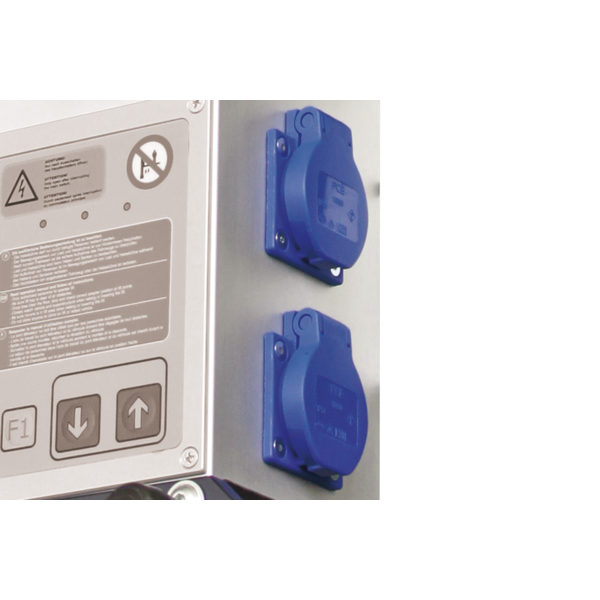

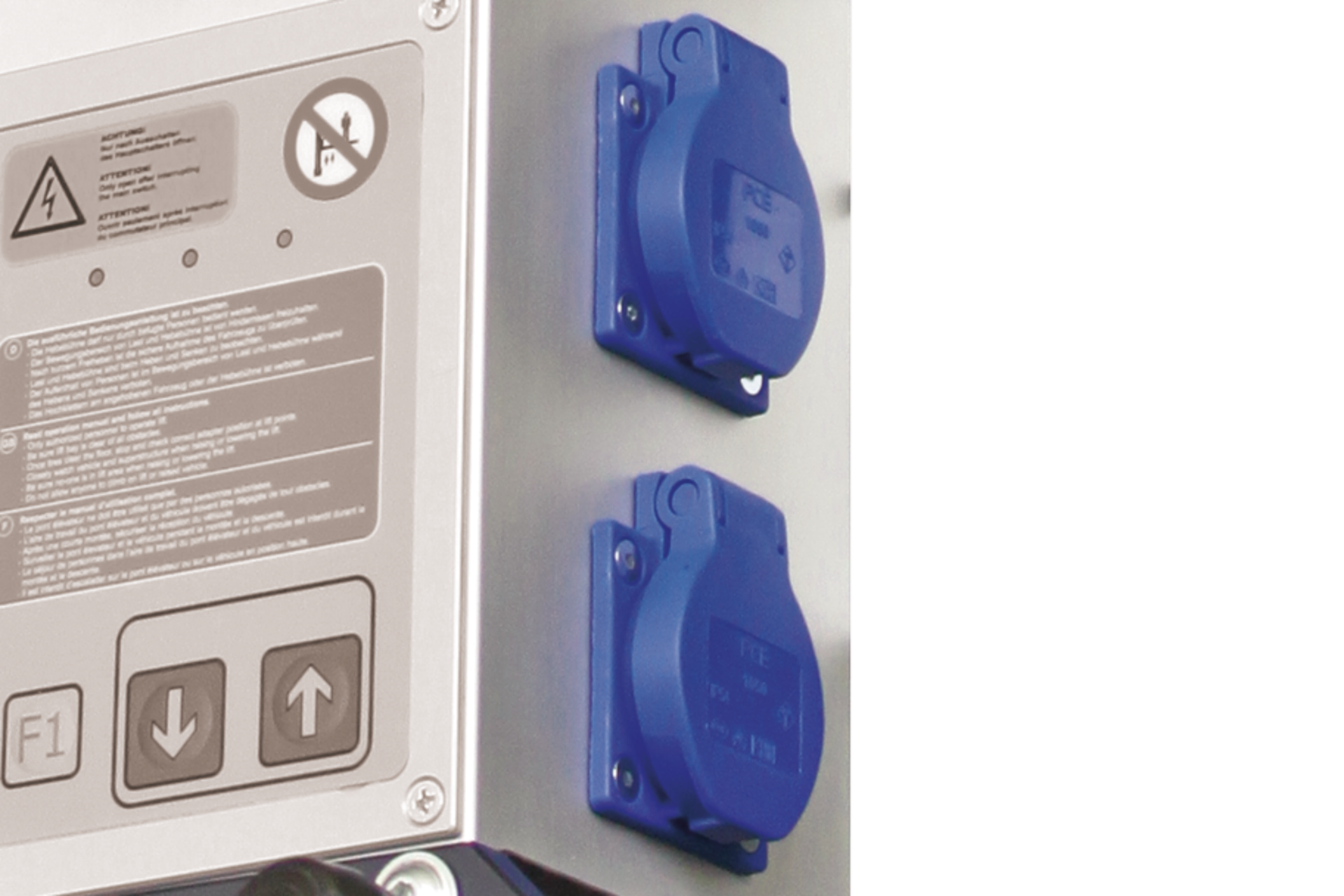

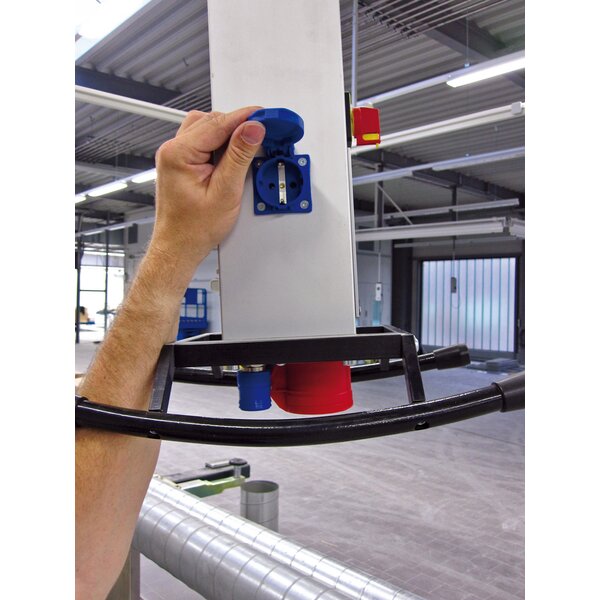

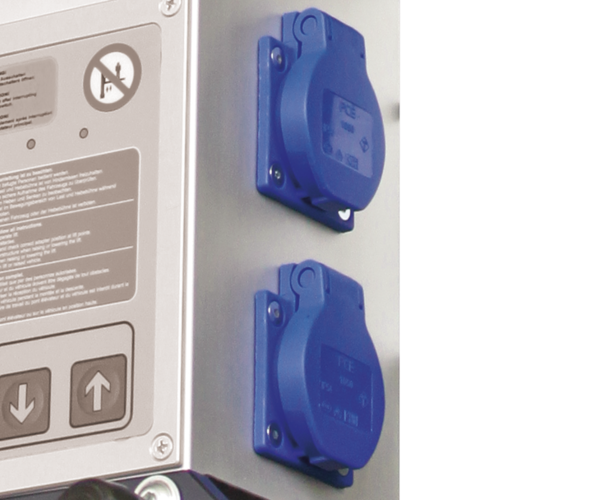

  • 4 x 230 V socket (Total fuse protection 16 A)

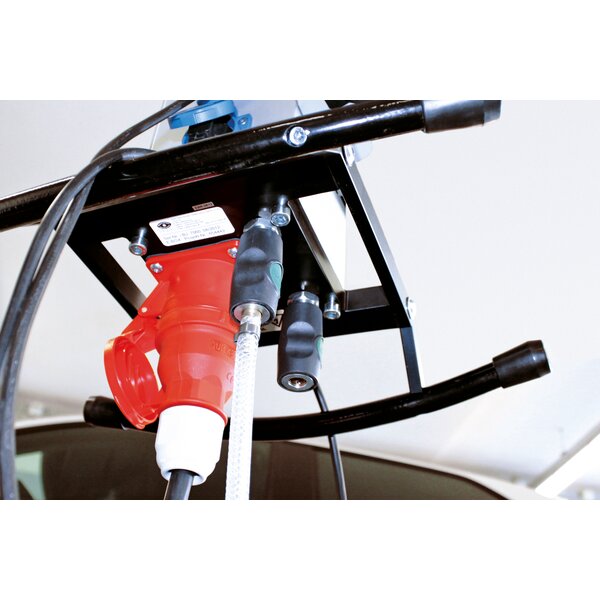

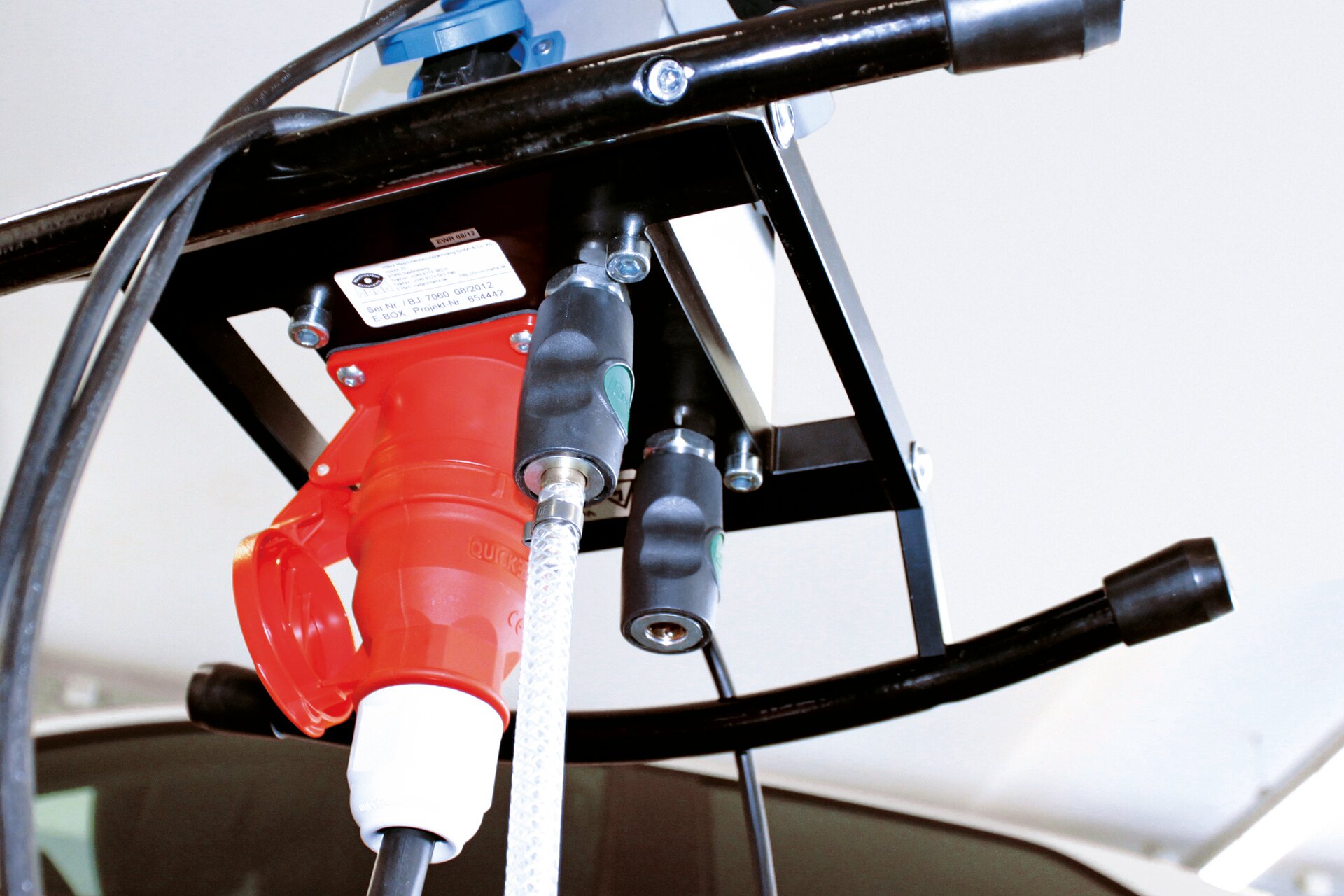

  • 2 x air connection with safety ventilation couplings NW 7.8
  • Declaration of conformity
  • Techn. manual
  • Packaging included

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Measurements (L x B x H)ca. 1280 x 120 x 120 mm
with compressed air supply/shock absorber
E-Box grip305 x 400 mm
Weight (without cable)13 kg
