product details / scope of delivery

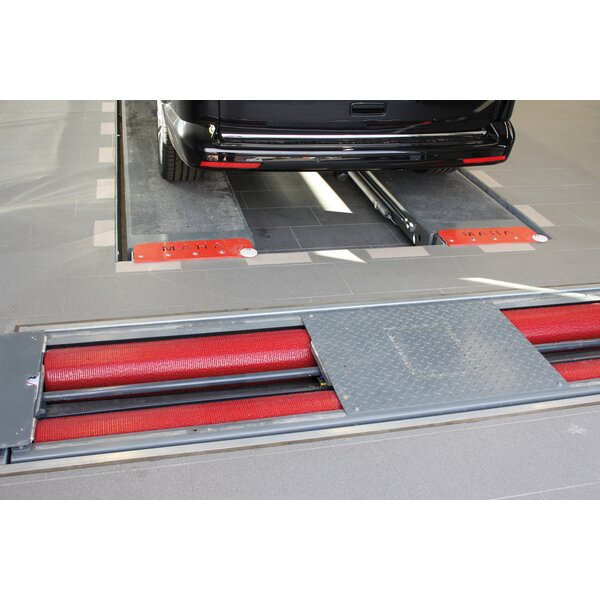

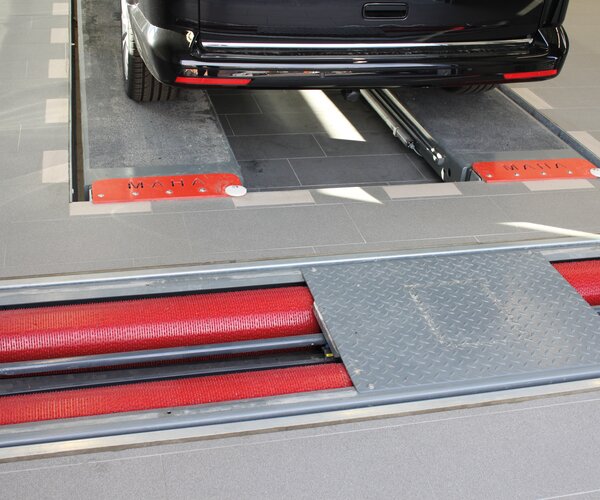

Description of the MBT 3250 EUROSYSTEM:
Test lane-enabled roller brake tester for cars and
particularly vans and light lorries with an axle load of up
to 8.0 t

  • Thanks to 8 t axle load and 2800 mm track width, particularly suitable for vans and light lorries
  • As a test speed of 5 km/h is supplied as standard, both cars and light lorries can be tested in compliance with legislation.
  • Visualisation of measured values, difference and graphics on monitor display
  • Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / TPS EURO floor units


  • Comprehensive package of functions for professional testing, such as:
    • Delayed automatic switch-on after entering the tester
    • Automatic start-up monitoring supplied as standard to avoid tyre damage
    • Automatic slip cut-off with pointer stop and automatic restart already included as standard
    • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
    • Automatic cut-off after exiting the tester
    • Single-wheel switching for differentiated consideration of each wheel


  • Intuitive-to-use EUROSYSTEM software for the highest expert standards with:
    • Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors.
    • Integrated user guidance with easy-to-understand user instructions
    • Continuous and graphic real-time display of all the measured values using the reference values time and force.
    • EUROSYSTEM supplied as standard with integrated SQL Server Express database
    • Multi-user capability option for productive allocation of the individual work packages to several workstations.
    • Easy to connect additional devices such as MLT 3000 to EUROSYSTEM
    • Configurable test report with all the measurement and evaluation results of the tests performed on a single print-out


  • Robust and long-lasting design due to:
    • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
    • Roller surface welded
    • Optional, free plastic coating on the test rollers
    • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
    • Lockable main switch
    • RS 232 interface connection
    • Splash-proof motors work reliably, even under high-stress environmental influences
    • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
    • Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt (German Transport Gazette)
    • Star-delta circuit to avoid high inrush currents
    • Self-supporting closed roller set
    • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Description of the MCD 2000 communication desk:

  • Robust and multifunctional metal casing
  • Integrated switch cabinet for housing electronic components
  • Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
  • VESA standard bracket for holding the all-in-one PC or PC monitor
  • Can be extended with optional PC storage compartment or side shelves
  • Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016 (side faces)

Dimensions of
communication desk (HxWxD)approx. 1230 x 860 x 350 mm
with printer compartment
option (HxWxD)approx. 1560 x 860 x 420 mm


Scope of delivery:

  • MCD 2000 communication desk with integrated switch cabinet
  • MBT 3000 roller set with preparation for weighing equipment

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Technical data:

Axle load (can be driven over)8000 kg
Min. track870 mm
Max. track2800 mm
Drive power2 x 5.5 kW
Test speed5 km/h
Measuring range10 kN
Roller diameter202 mm
Roller axle distance400 mm
gG fuse35 A
Power supply3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H)2925 x 680 x 280 mm
