product details / scope of delivery

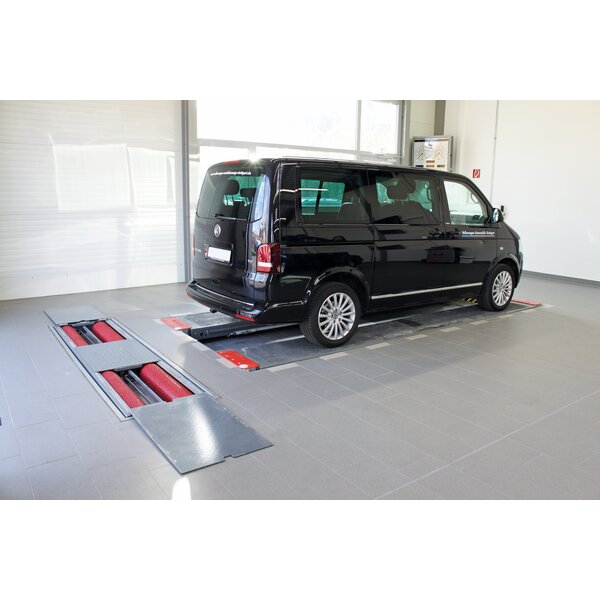

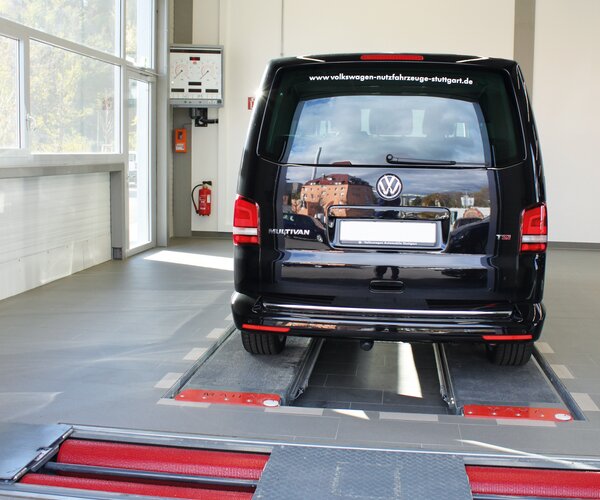

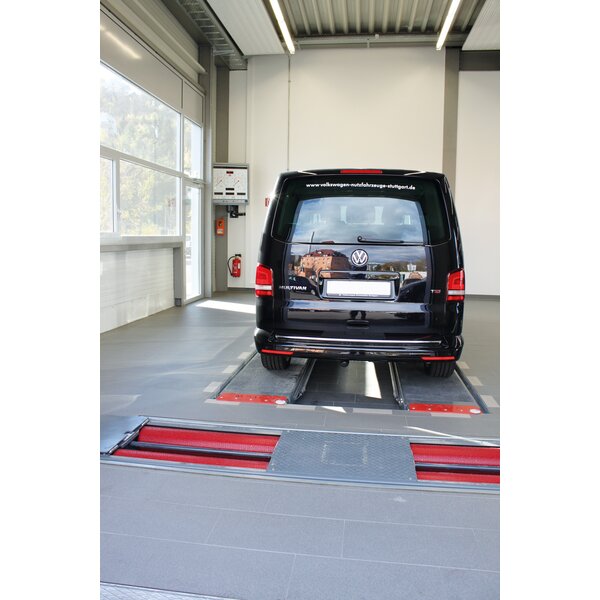

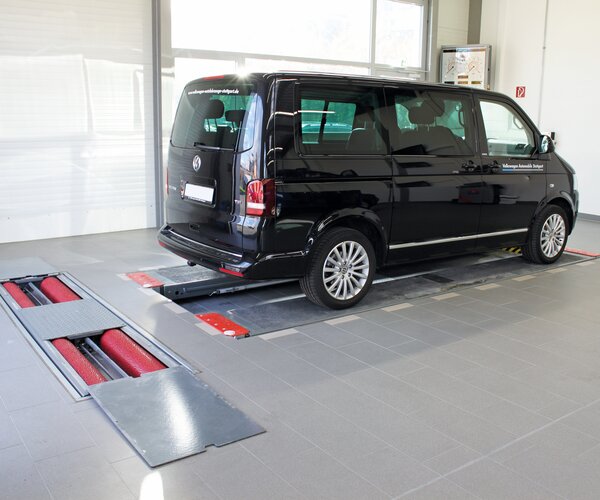

Description of the MBT 3200 LON:
Test lane-enabled roller brake tester with Multi-analogue
display particularly for cars, vans and light lorries with an
axle load of up to 8.0 t

  • Thanks to 8 t axle load and 2800 mm track width, particularly suitable for vans and light lorries
  • As a test speed of 5 km/h is supplied as standard, both cars and light lorries can be tested in compliance with legislation.
  • Multi-analogue display with two pointer indicators (Diameter: 2 x 350 mm) and an integrated switch and electrical cabinet Display option for:
    • Brake tester
    • Wheel arch tester
    • Shock absorption tester
  • Difference display (three-digit + LED bar) for evaluating:
    • Difference in braking force
    • Difference in shock absorption
    • Deviation in wheel arch
  • Program control using 32-bit microprocessor electronics

enables the finest resolution for the measurement results
Dimensions of display (H x W x D)910 x 870 x 300 mm


  • Comprehensive package of functions for professional testing, such as:
    • Delayed automatic switch-on after entering the tester
    • Automatic start-up monitoring supplied as standard to avoid tyre damage
    • Automatic slip cut-off with pointer stop and automatic restart already included as standard
    • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
    • Automatic cut-off after exiting the tester
    • Single-wheel switching for differentiated consideration of each wheel


  • Robust and long-lasting design due to:
    • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
    • Roller surface welded
    • Optional, free plastic coating on the test rollers
    • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
    • Lockable main switch
    • RS 232 interface connection
    • Splash-proof motors work reliably, even under high-stress environmental influences
    • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
    • Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt (German Transport Gazette)
    • Star-delta circuit to avoid high inrush currents
    • Self-supporting closed roller set
    • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Scope of delivery:

  • Analogue display with two pointer indicators and an integrated switch cabinet
  • MBT 3000 roller set with preparation for weighing equipment

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Technical data:

Axle load (can be driven over)8000 kg
Min. track870 mm
Max. track2800 mm
Drive power2 x 5.5 kW
Test speed5 km/h
Measuring range10 kN
Roller diameter202 mm
Roller axle distance400 mm
gG fuse35 A
Power supply3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H)2925 x 680 x 280 mm
