Description:

  • Quick and accurate physical axle damping testing
  • Evaluation based on Lehr's damping ratio
  • Automatic measurement of axle and vehicle weight with transfer of weight to brake tester (optional)
  • Fully-automatic test sequence launched once plate load of is more than 60 kg on both sides
  • Frequency-controlled plate excitation by electric motors to determine the maximum vibration amplitude, with subsequent evaluation of axle damping
  • Noise search function for pinpointing interference noises in the vehicle directly on the test stand (optional)

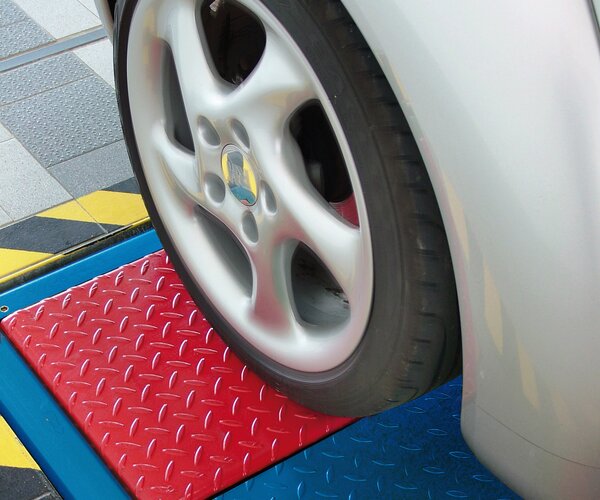

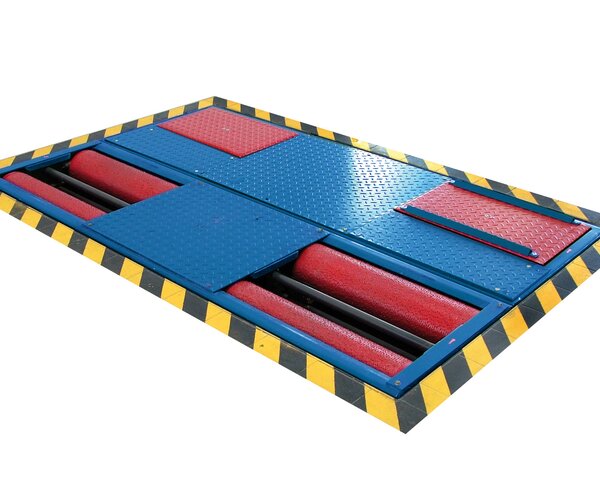

  • Floor unit as self-supporting framework
  • Parallelogram-guided test plates and therefore no fixed wheel testing point necessary

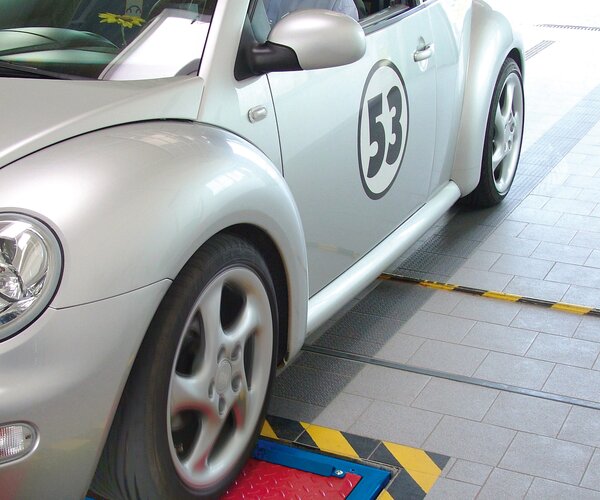

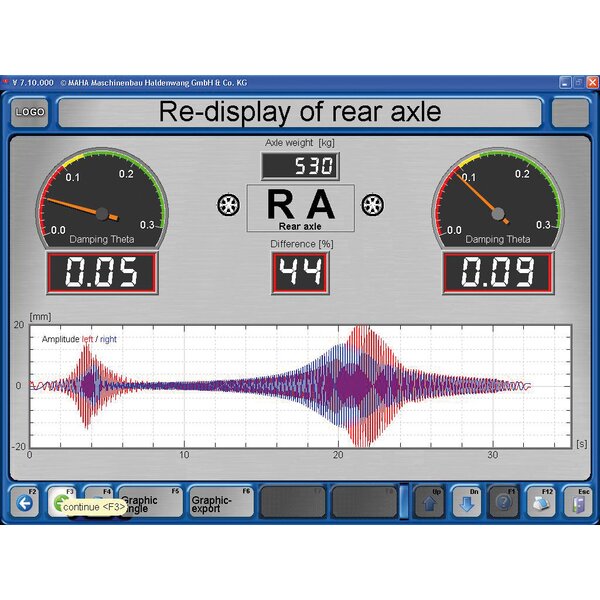

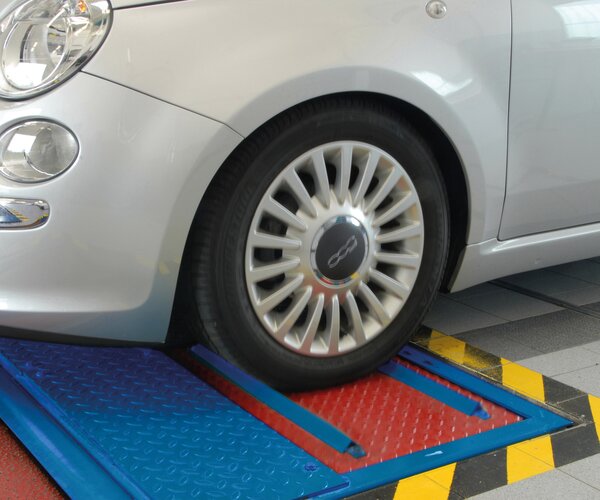

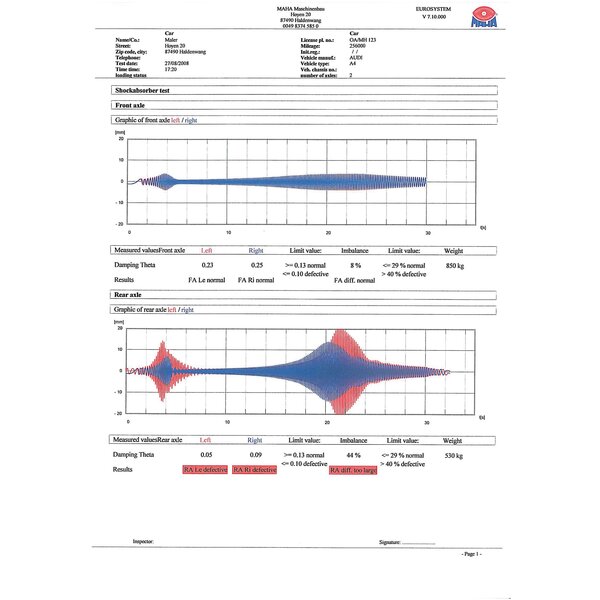

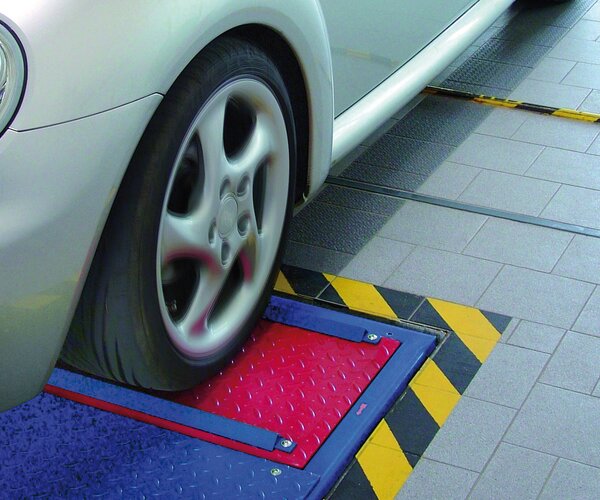

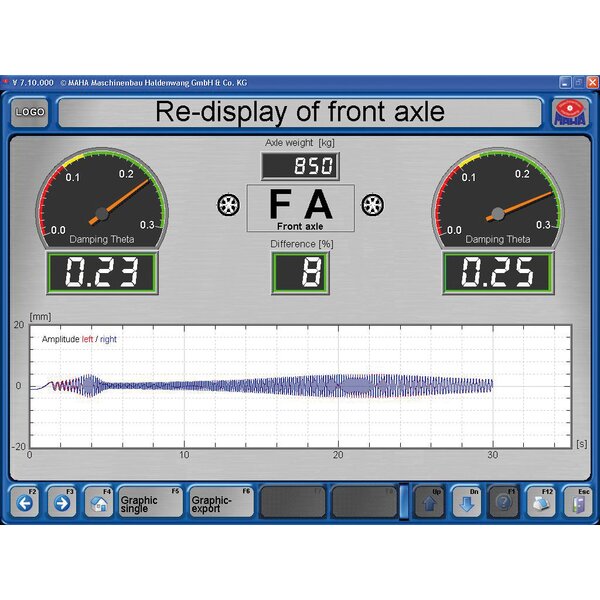

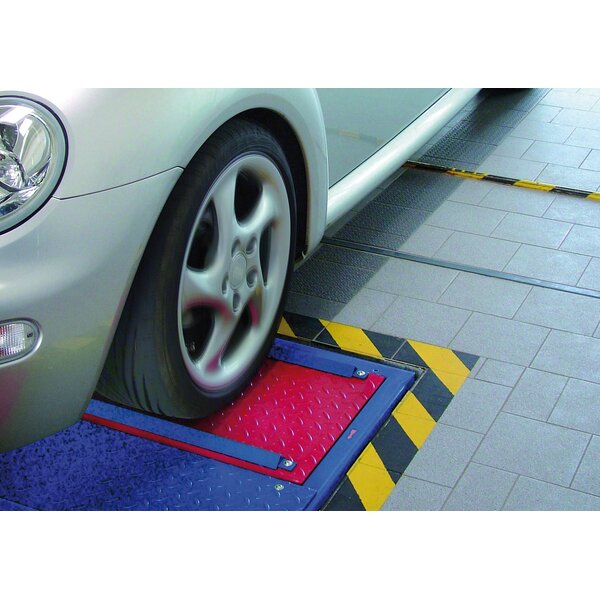

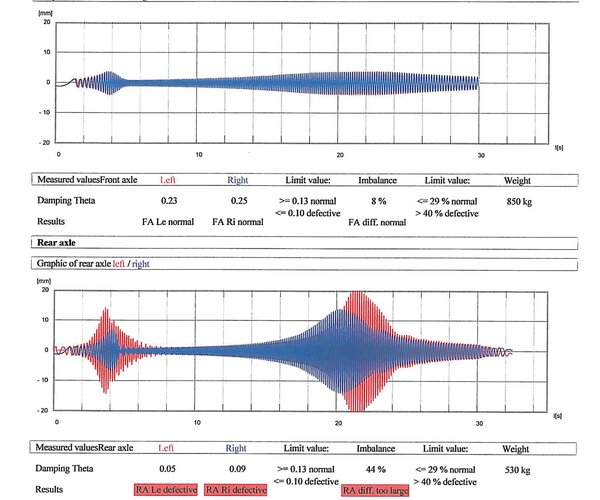

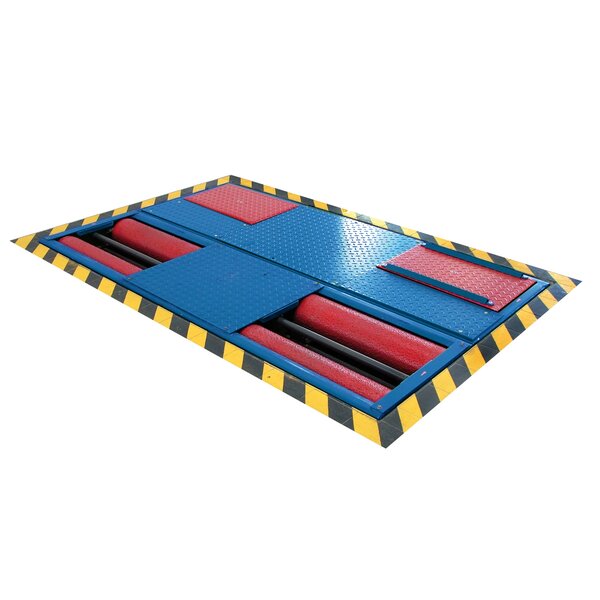

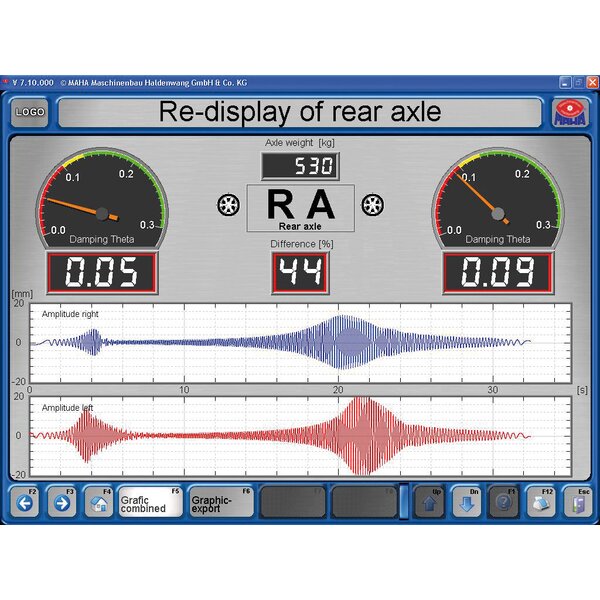

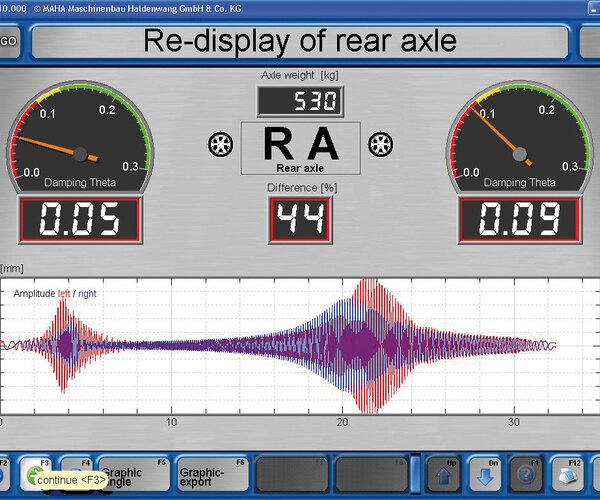

  • In conjunction with EUROSYSTEM: display on PC screen with evaluation by Lehr's damping ratio "D" with deviation display and graphic representation
  • In conjunction with LON brake testers: representation on LON analogue displays with evaluation by Lehr's damping ratio "D"
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Standard delivery:

  • MSD 3000 EURO Floor Unit Axle Damping Tester
  • Pre-configured for connection to EUROSYSTEM or LON test line
  • Pre-configured for stand-alone use (requires MCD 2000 communication desk with electronics)

Downloads

Brochures

Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Technical Data:

Axle load (test capacity)2200 kg
Axle load (support capacity)2500 kg
Min. track880 mm
Max. track2200 mm
Drive power2 × 1.1 kW
Excitation lift6.5 mm
Excitation frequency (regulated)2 - 10 Hz
Maximum plate lift70 mm
Measurement display
(damping ratio "D")0.02 - 0.3 (without units)
gG fuse16 A
Power supply1/N/PE 230 V 50/60 Hz
Floor unit dimensions (H x W x L)280 x 800 x 2320 mm
