product details / scope of delivery
Description:

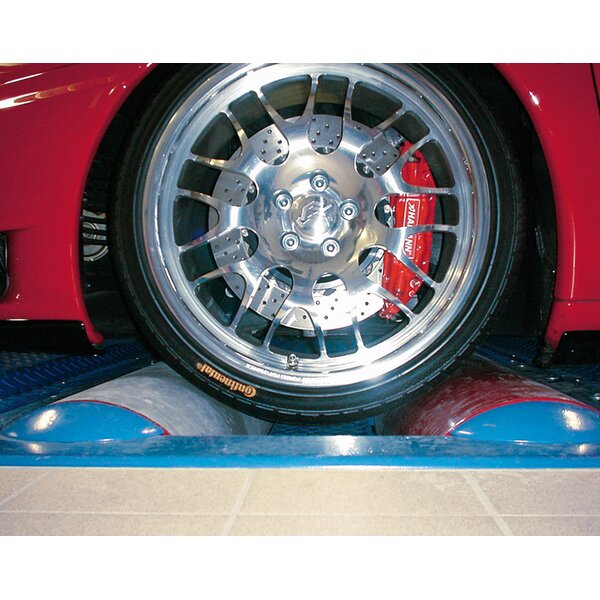

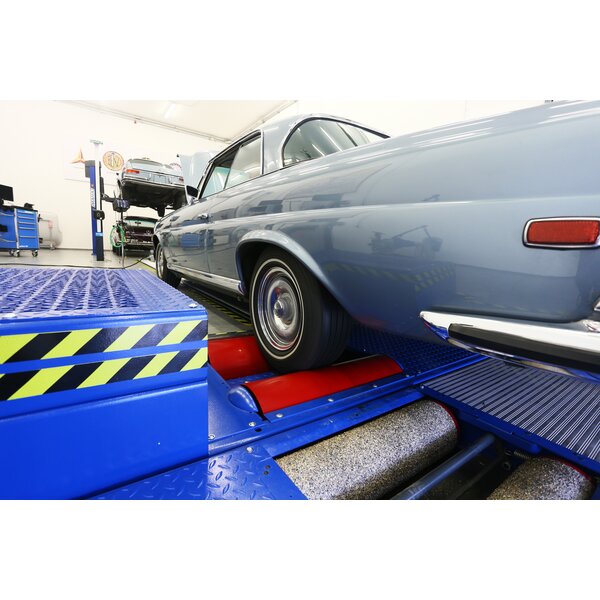

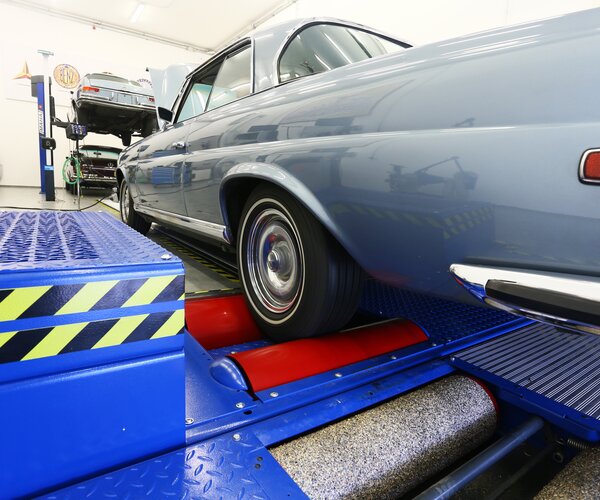

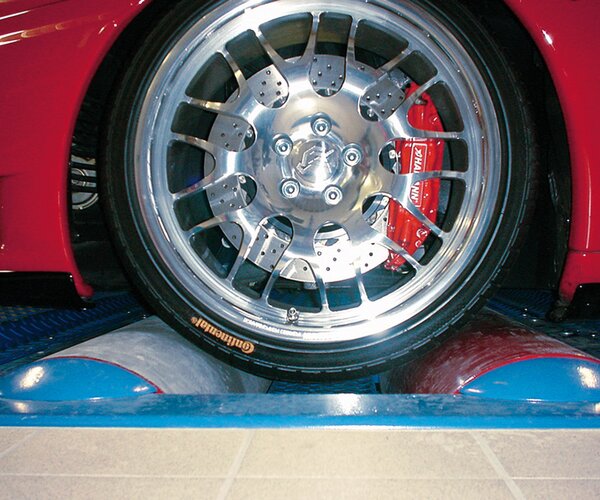

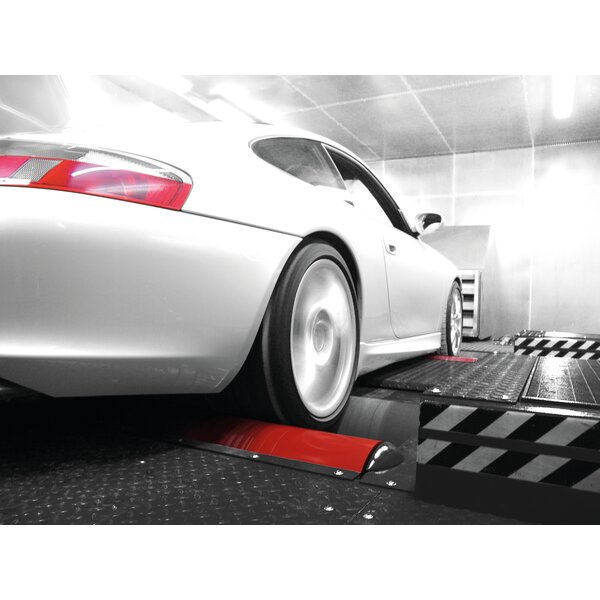

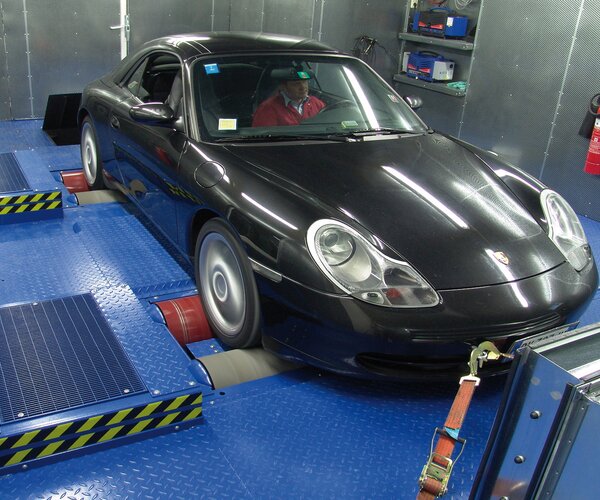

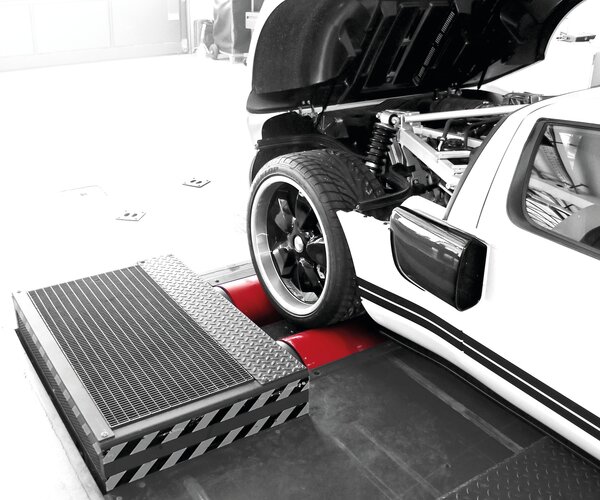

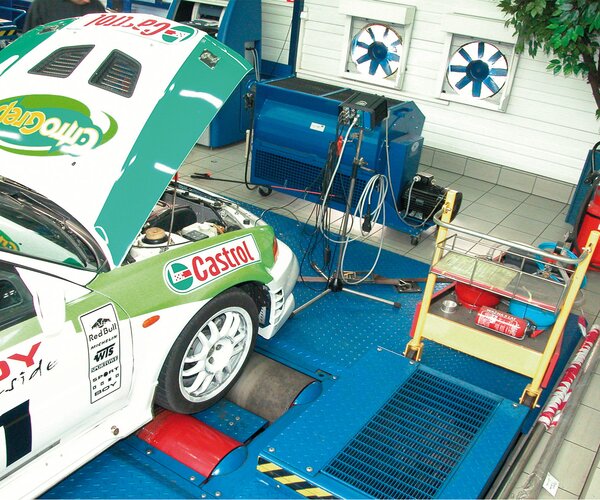

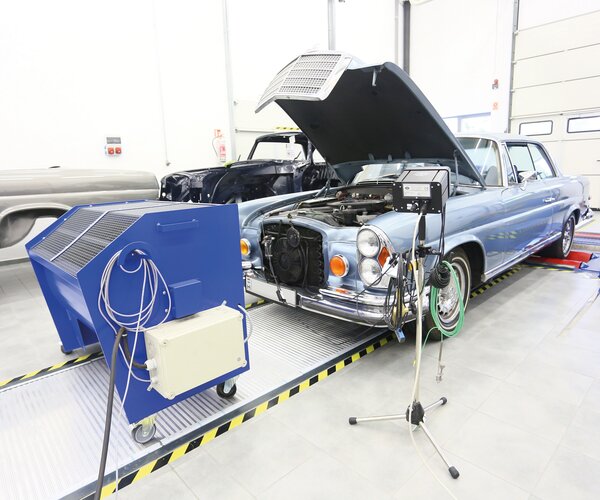

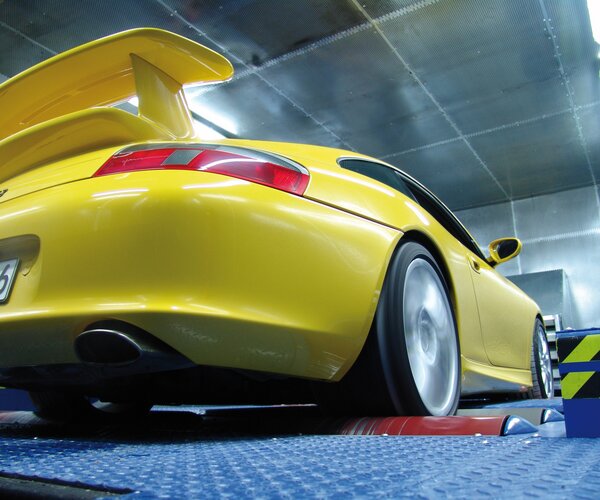

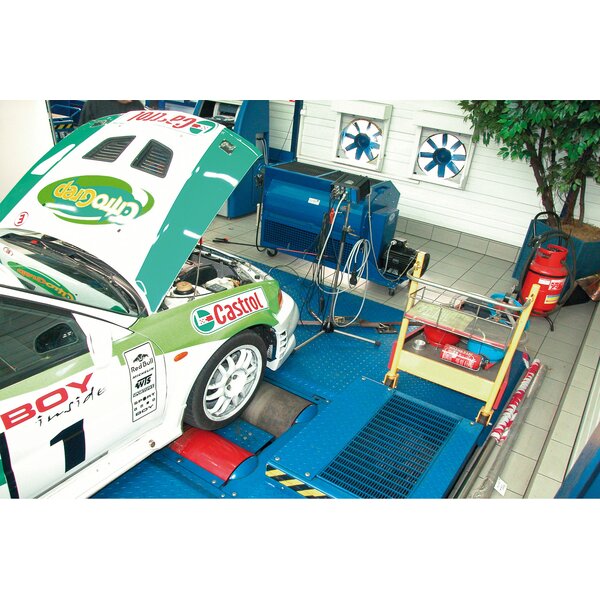

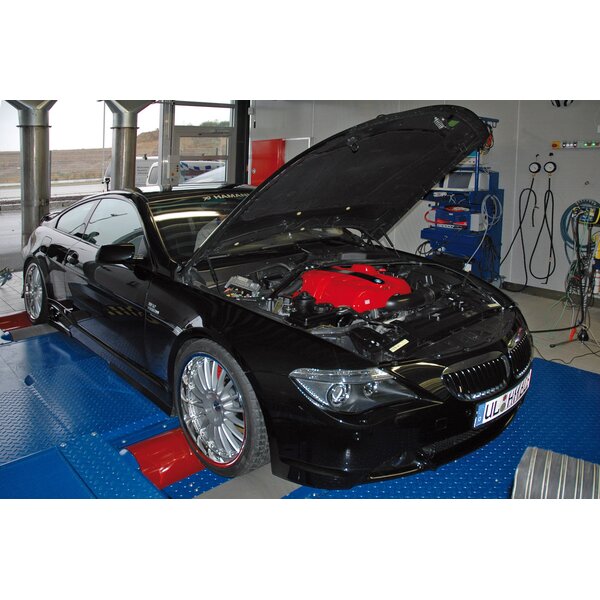

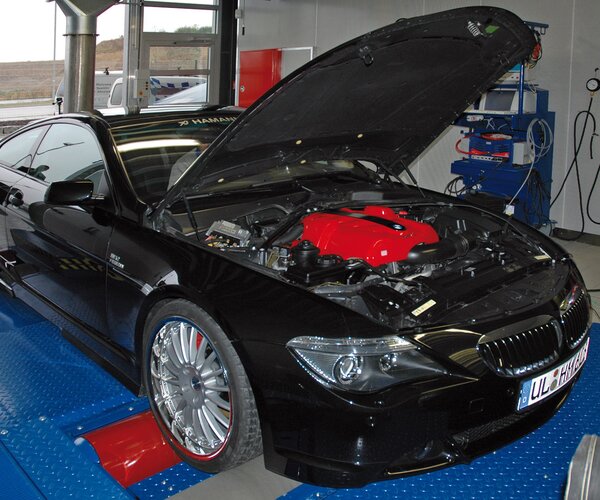

- Self-supporting closed roller set with an eddy-current brake on the right side of the dynamometer (in driving direction)
- Optional eddy-current brake on the left for left-hand driving

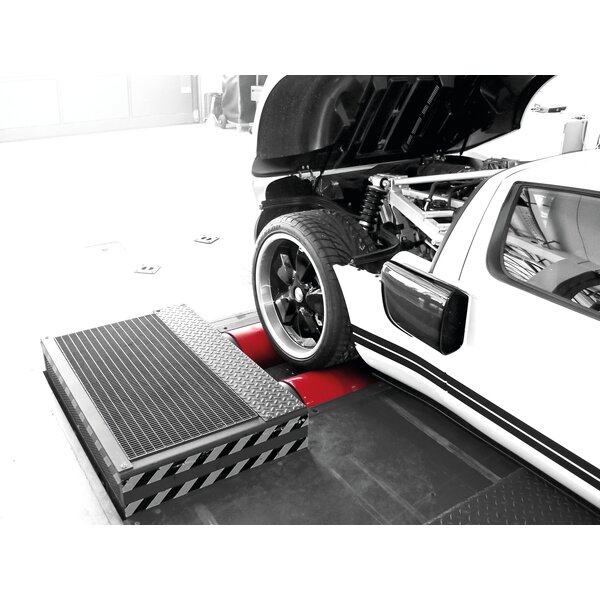

- Pneumatic lifting bar for easy and gentle drive-in and out
- 45 mm roller superelevation for optimum air flow
- Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (dynamometer frame, covers)
- Wet-coated load roller, ruby red, RAL 3003"
- Optional flame-sprayed rollers for optimum adhesion
- Available with roller axle distance of 500 mm on request for sports cars with limited ground clearance
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure POWERDYNO
|
||
|
Brochure (Printable version) POWERDYNO
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet R 100/1
|
||
|
Technical Datasheet (Printable version) R 100/1
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions LPS 3000
|
||
Technical Data
Technical Data:
| Axle load | 2500 kg |
| Max. electric eddy-current brake | 260 kW |
| Roller set dimensions (L x W x H) | 3345 x 1100 x 625 mm |
| Weight . | approx. 1200 kg |
| Min. track | 800 mm |
| Max. track | 2300 mm |
| Smallest testable wheel diameter | 305 mm |
| Roller diameter | 318 mm |
| Power supply | 3/N/PE 230 V 50 Hz |
| (Special voltage on request) | |
| gG fuse | 16 A |
| Min. compressed air for lifting bar | 5 bar |
| Max. test speed | 260 km/h |
| Max. (static) wheel power | 260 kW |
| (dynamic) peak | > 520 kW |
| Max. tractive force | 6 kN |
| Measurement accuracy | |
| Wheel power measurement | +/- 2 % from measured value |
| Packaging dimensions (L x W x H) | 3500 x 1220 x 1100 mm |
| Weight including packaging | approx. 1400 kg |
