product details / scope of delivery

Description:

  • Single-axle single roller dynamometer for cars with axle load of up to 2.4 t, eddy-current brake included, ideally suited for performance measurements, tuning and diagnostic work in powerful vehicles


  • Test speeds of up to 300 km/h
  • Tyre rolling action as it would be on the road
  • Tyres are preserved as a result of limited flexing action

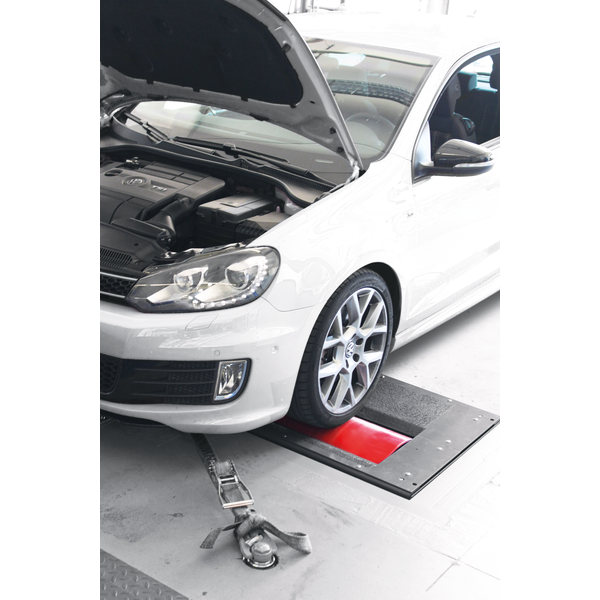

  • Simple restraining mechanism for quick vehicle fixation


High level of flexibility in use due to extensive variety of
operating modes, covering all fields of application:

  • Static power measurement at constant RPM
  • Static power measurement at constant speed
  • Static power measurement at constant tractive force
  • Dynamic power measurement with adjustable acceleration
  • MAHA towing power measurement guarantees the highest degree of accuracy when measuring power: Precision calculation of the parasitic losses of the dynamometer, of the vehicle's drive train and the tyre to roller friction and flex losses
  • Tachometer testing with up to ten freely selectable test points
  • Distance measurement included
  • Stopwatch function for measurement of acceleration between optional speed markers as standard
  • Optional load simulation with freely programmable load profile
  • Optional driving simulation with freely programmable speed profile
  • Option of storing programmed profiles in database


Professional, intuitive-use software for the highest expert
standards with:

  • continuous graphic display and recording of up to 16 freely selectable parameters per performance measurement cycle on one measurement screen.
  • In addition to the current performance measurement cycle, fade-in of up to three stored cycles on the measurement screen for optimum comparability during calibration work
  • Two circular dial displays for RPM and speed as well as current oil temperature display, ensuring constant control of key parameters during performance measurement
  • Determination of wheel power, power dissipation, engine power and torque
  • Standardised extrapolation of motor power in line with DIN 70020, EEC 80/1269, ISO 1585, JIS D 1001 and SAE J 1349 (configuration-dependent)


  • Circular dial display of motor power, RPM, speed and tractive force during simulation cycles
  • Colour-highlighted user prompts integrated within the circular dial facilitate the accurate reproduction of simulation cycles
  • With radio remote control as standard for complete control of the dynamometer from within the vehicle.
  • Radio remote control with long-life battery and charging station
  • Cooling fan switched on and off either at the control console or with the radio remote control


  • With interface box including stand and long connection cable as standard for optimum placement at the dynamometer with MAHA plug-in CAN-DRZ module card for connecting RPM sensor.
  • Interface box optionally upgradeable with MAHA plug-in card for comprehensive recording of external Ambient data such as air temperature, air pressure, rel. humidity and intake temperature
  • Interface box optionally upgradeable with MAHA plug-in analogue input module card with 4 sensor inputs for temperature and pressure sensors or lambda sensors.
  • Optional connection of MAHA MGT 5, MDO 2 LON and MET SERIES emission testers
  • Optional connection of Krupp/AIC fuel consumption measuring instruments for petrol- and diesel engines


MCD 2000 Communication Desk Description

  • Robust and multifunctional metal encasement
  • Integrated switch cabinet for housing electronic components
  • Lockable drawer for keypad and PC mouse and storage compartment for small items of equipment
  • VESA standard bracket for holding the all-in-one PC or PC monitor
  • Can be extended with optional PC storage compartment or side shelves
  • Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016, (side faces)


MCD 2000 Standard Delivery

  • MCD 2000 Communication Desk
  • interface box 1 including stand and connection cable with plug-in environment module (CAN-PTH module) card for recording air temperature, air pressure, humidity with plug-in RPM module (CAN-DRZ module) card for RPM recording via trigger clamp, light signal sensor, piezo clamp, clamp W and TDC sensor (insertion of max. 4 modules per box possible)
  • Radio remote control for dynamometer operation with battery and charging station
  • Cooling fan control
  • Measuring program


Roller Set Standard Delivery:

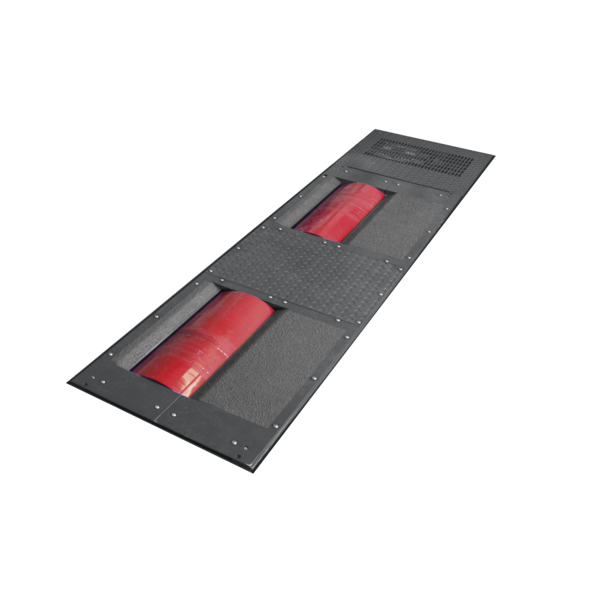

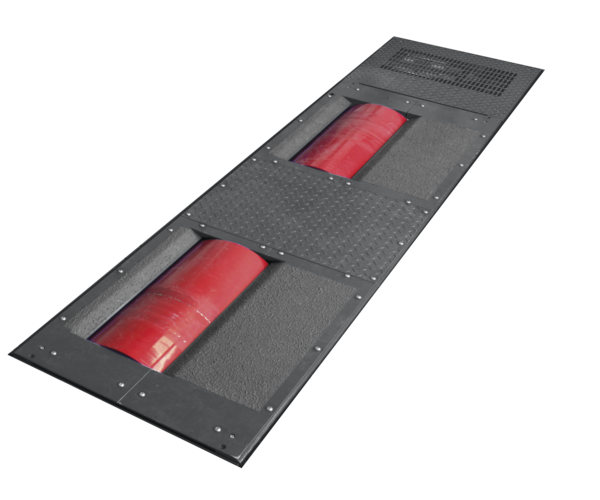

  • Robust self-supporting, closed roller set with an eddy-current brake
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Communication Desk Technical Data

Desk dimensions (W x H x D)860 x 1500 x 420 mm
Power supply3/N/PE 400 V 50 Hz
gG fuse63 A
Weight including packagingapprox. 150 kg
Converter cabinet (W x H x D)800 x 1000 x 400 mm


Roller Set Technical Specifications

Axle load2500 kg
Weightapprox. 1300 kg
Rotating mass per roller setapprox. 280 kg
Min. track700 mm
Max. track2200 mm
Roller diameter504 mm
Roller set dimensions (L x W x H)1095 x 3324 x 512 mm
Max. air pressure7 bar
Max. test speed300 km/h
Max. (static) wheel power260 kW
(dynamic) peak> 1000 kW
Max. tractive force6 kN
Measurement accuracy
Wheel power measurement+/- 2% from measured value
Roller superelevation5 mm
Electric motor with drive power (optional)22 kW
