product details / scope of delivery

Description:

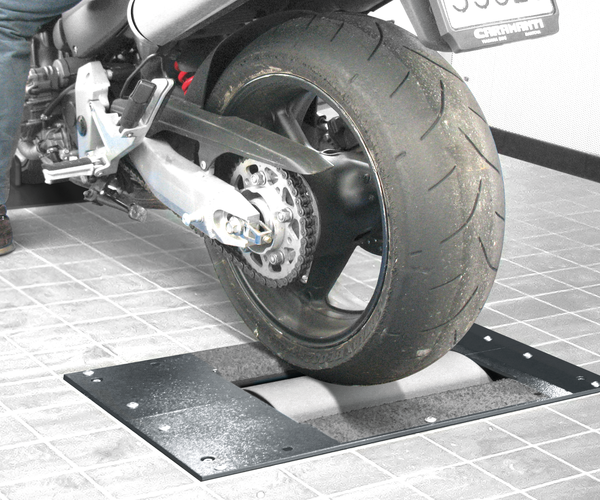

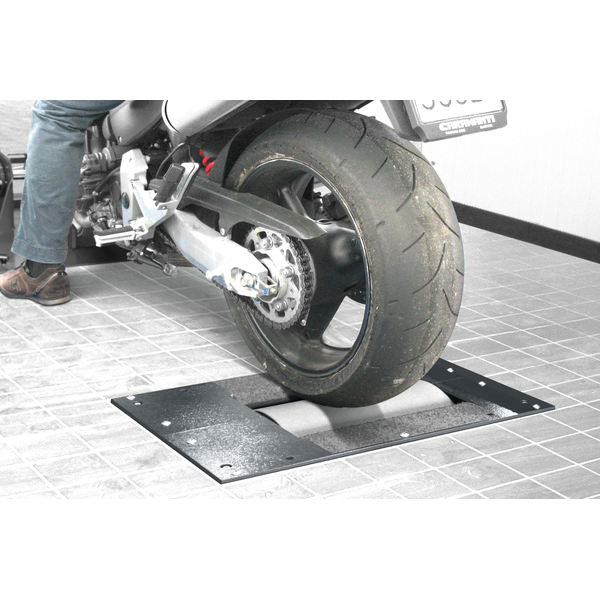

Inertia single roller dynamometer for motorcycles, for
flush-floor installation

  • Test speeds of up to 320 km/h
  • Tyre rolling action as it would be on the road
  • Tyres are preserved as a result of limited flexing action


High level of flexibility in use due to extensive variety of
operating modes, covering all fields of application:

  • Static power measurement at constant RPM
  • Static power measurement at constant speed
  • Static power measurement at constant tractive force
  • Dynamic power measurement with adjustable acceleration
  • MAHA towing power measurement guarantees the highest degree of accuracy when measuring power: Precision calculation of the parasitic losses of the dynamometer, of the vehicle's drive train and the tyre to roller friction and flex losses
  • Tachometer testing with up to ten freely selectable test points
  • Distance measurement included
  • Stopwatch function for measurement of acceleration between optional speed markers as standard
  • Optional load simulation with freely programmable load profile
  • Optional driving simulation with freely programmable speed profile
  • Option of storing programmed profiles in database


Professional, intuitive-use software for the highest expert
standards with:

  • continuous graphic display and recording of up to 16 freely selectable parameters per performance measurement cycle on one measurement screen.
  • In addition to the current performance measurement cycle, fade-in of up to three stored cycles on the measurement screen for optimum comparability during calibration work
  • Two circular dial displays for RPM and speed as well as current oil temperature display, ensuring constant control of key parameters during performance measurement
  • Determination of wheel power, power dissipation, engine power and torque
  • Standardised extrapolation of motor power in line with DIN 70020, EEC 80/1269, ISO 1585, JIS D 1001 and SAE J 1349 (configuration-dependent)


  • Circular dial display of motor power, RPM, speed and tractive force during simulation cycles
  • Colour-highlighted user prompts integrated within the circular dial facilitate the accurate reproduction of simulation cycles
  • With radio remote control as standard for complete control of the dynamometer from within the vehicle.
  • Radio remote control with long-life battery and charging station
  • Cooling fan switched on and off either at the control console or with the radio remote control


  • Interface box optionally upgradeable with MAHA plug-in analogue input module card with 4 sensor inputs for temperature and pressure sensors or lambda sensors.
  • Optional connection of MAHA MGT 5, MDO 2 LON and MET SERIES emission testers
  • Optional connection of Krupp/AIC fuel consumption measuring instruments for petrol- and diesel engines


MCD 2000 Communication Desk Description

  • Robust and multifunctional metal encasement
  • Integrated switch cabinet for housing electronic components
  • Lockable drawer for keypad and PC mouse and storage compartment for small items of equipment
  • VESA standard bracket for holding the all-in-one PC or PC monitor
  • Can be extended with optional PC storage compartment or side shelves
  • Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016, (side faces)


MCD 2000 Standard Delivery

  • MCD 2000 Communication Desk
  • Radio remote control for dynamometer operation with battery and charging station
  • Cooling fan control
  • Measuring program


Roller Set Standard Delivery:

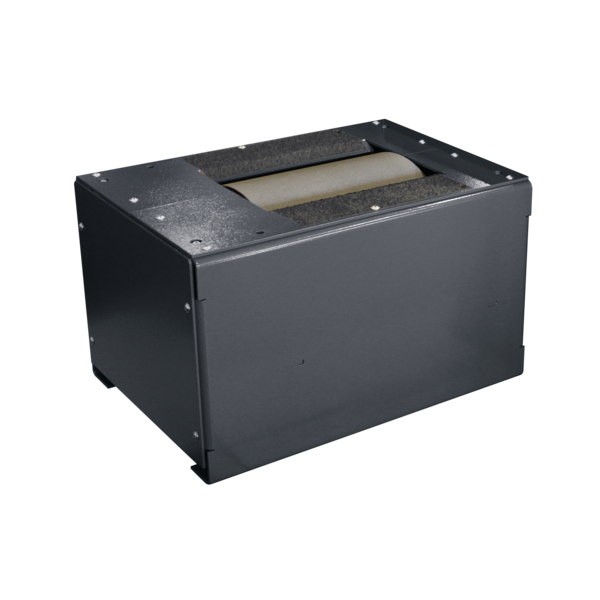

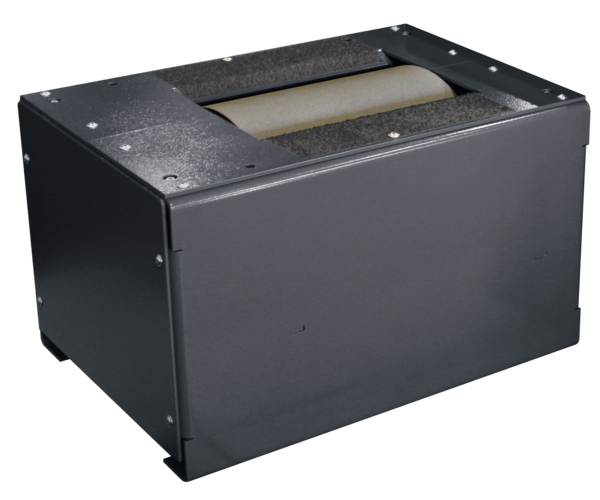

  • Self-supporting closed inertia roller set
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Communication Desk Technical Data

Desk dimensions (W x H x D)860 x 1500 x 420 mm
Power supply3/N/PE 400 V 50 Hz
(Special voltage 1 x 230 V, 50/60 Hz)
gG fuse16 A
Weight including packagingapprox. 150 kg


Roller Set Technical Specifications

Axle load1000 kg
Weight270 kg
Roller set rotating massapprox. 150 kg

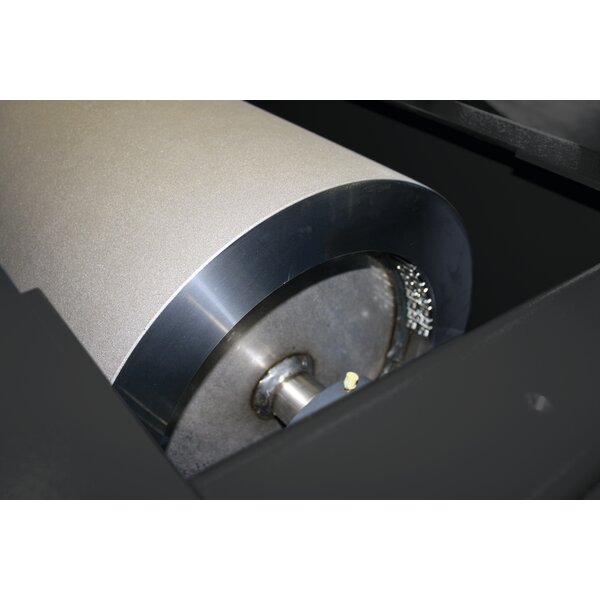

Roller diameter400 mm
Roller set dimensions (L x W x H)546 x 770 x 456 mm
Measurement principleFlywheel test stand
Max. air pressure7 bar
Max. test speed320 km/h
Wheel power (dynamic) peak> 350 kW
Max. tractive force6.5 kN
Measurement accuracy
Wheel power measurement+/- 2% from measured value
