product details / scope of delivery

Description:

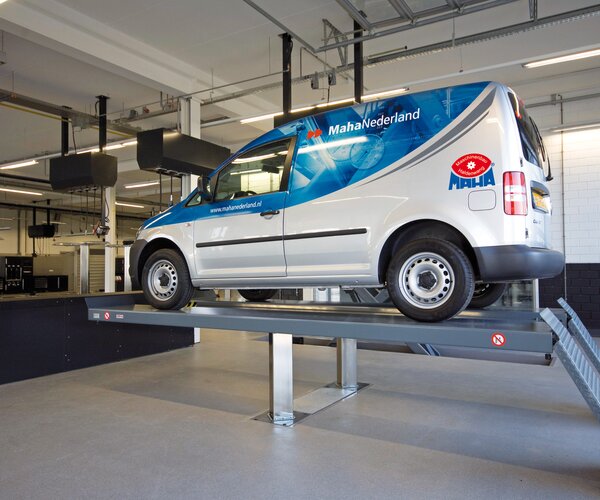

Two-post in-floor lift with driving platforms

Description of driving platform:

  • Driving platform length 4400 mm ideal for cars and small transporters
  • Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
  • Optionally, can be upgraded to vehicle check-in lift with axle play tester to inspect chassis assemblies
  • Optional conversion to chassis measurement lift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and axle measurement supports
  • A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
  • Optional driving platform coating with granulate coating or aluminium panelling
  • Additional corrosion-resistant treatment in the seam region and body cavity-sealing increases the service life
  • Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
  • All cables are protected inside the SQUARE post
  • Optional, no-dazzle rotatable LED lighting
  • Various assembly variants for optimum use:
    • Driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
    • Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
    • Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
  • Runways and ground levelling pre-equipped for the use of an optional axle lift
  • Pinch point and shear point protection thanks to CE stop


SQUARE lift unit:

  • Outstanding rigidity and optimum safety thanks to torsion-resistant square post
  • Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
  • Electronic lift control with no-contact, wear-free limit switches and visual error display
  • Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust, low-maintenance post design
  • Protected internal hydraulic safety cylinder guarantee lengthy service life
  • Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
  • High lifting/lowering speeds are guaranteed (max. 30/20 s)
  • Battery-operated emergency lowering
  • Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system


Scope of delivery:

  • Driving platform 4400 mm, powder-coated Anthracite Grey (RAL 7016)
  • Lift unit with hydraulic assembly
  • Ramps and drive-on plates
  • Rapid-action compressed-air coupling mounted on driving platform
  • Wiring and mounting material
  • Lift unit with movable yoke
  • Installation box/installation frame not included in delivery
  • Emergency DOWN cable for connection to switch box
  • Control unit with 2 x 10 m control cables (flexible oil cables)
  • Lockable master switch
  • Operating manual and test log
  • EC Declaration of Conformity CE

Downloads

Brochures

Brochures
Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Technical data:

Load capacity CE3500 kg
Dimensions of driving
platform (L x W x H)4400 x 617 x 126 mm
Inner drive-through width840 mm
Total dimensions (L x W x H)5471 x 2074 x 126 mm
Max. lifting height2016 mm
Post dimensions, square180 mm
Post spacing1350 mm
Installation depth2382 mm
Lifting/lowering time depending on loadapprox. 30/20 s
Hydraulic oil volume (not included)approx. 28 l
Operating pressure180 bar
Control unit (H x W x D)320 x 220 x 120 mm
Drive power3.0 kW
Fuse gG16 A
Power supply3/N/PE 400 V 50 Hz
