product details / scope of delivery

  • on-ground -

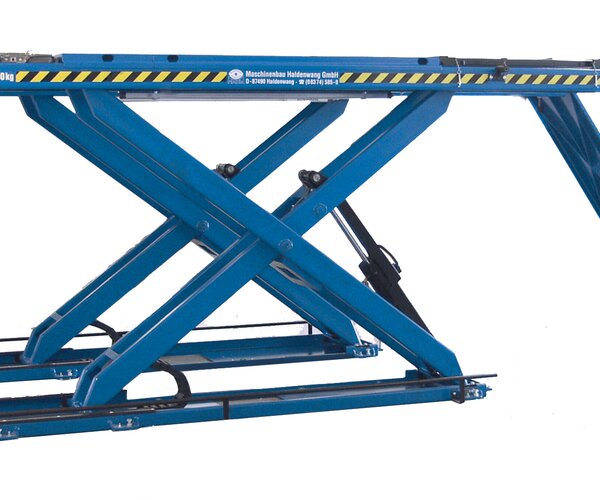

  • Scissor lift for on-ground installation
  • Very robust and well-established design with a high vehicle throughput and optimum service life in mind
  • High lateral stability and bending strength, so also suited to precise wheel alignment
  • Runways equipped with pre-integrated guide rail for axle lift
  • Latches and cylinder racks as extra safety feature
  • Cables and hydraulic hoses installed safely within scissor pipes
  • An elevated lifting height in excess of 2.1 m makes repair works and access easier
  • EMERGENCY OFF function in the case of power failure
  • Additional anti-corrosion treatment of lock seams, cavity sealing
  • Varnished with high-quality powder coating:
    • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Base frame)
    • Window Grey, RAL 7040 (Scissors, Control Desk)

  • Automatic synchronisation of runways and the optional wheel-free jack
  • Protected within the lifting cylinders, the maintenance-free integrated displacement measurement encoder ('linear-absolute measuring system') eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection
  • High level of safety due to immediate switch-off in case of (one-sided) collision with obstacle at minimum height difference
  • Crushing and shearing protection due to CE stop
  • Stops automatically upon rising to desired lifting height with custom programmable breakpoint
  • Robust membrane keyboard

  • Double latch option for wheel alignment for additional stability within the scissors arm (not possible in conjunction with wheel-free jack)
  • DUO-SPEED option for short lifting / lowering times

Scope of delivery:

  • Scissor lift, type: DUO CM 5.0 A
  • Operation desk with control and hydraulic unit
  • Lockable main switch
  • Cover plates for cables and hydraulic hoses
  • 2 long drive-on ramps, 2 roll bars
  • 2 pneumatic quick-action couplings installed on runway
  • 8 rope loops to be used as a transport aid
  • Operating manual and test log
  • EC CE declaration of conformity
  • Transport packaging


Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

CE load capacity5000 kg
CE load capacity with wheel-free jack5000 kg
Max. lifting height2140 mm
Stroke1850 mm
Lifting / lowering time, load-dependentapprox. 50 / 40 s
Overall dimensions (L x W x H)6800 x 2210 x 290 mm
Drive-on height (without accessories)290 mm
Runway dimensions (L x W x H)5200 x 630 x 176 mm
Drive power2.5 kW
Operating pressure190 bar
Power supply3/N/PE 400 V 50 Hz
gG fuse16 A
Weight3000 kg
Weight including packaging3200 kg
Packaging dimensions (L x W x H)5300 x 800 x 800 mm
Hydraulic oil volume (not included)40 l
