product details / scope of delivery

1-stage telescopic, rail-guided, suspended

Description:

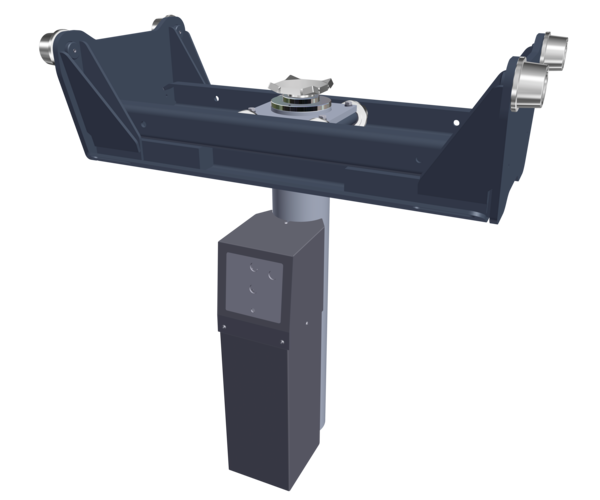

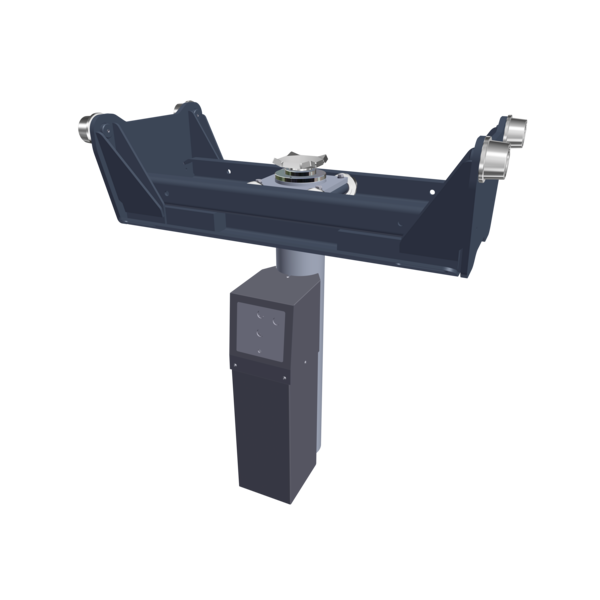

Automatic pit jack
Electric automatic pit jack
Specifically for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support systems for lorries and buses with 16.5 t load capac.

Control:

  • Electrohydraulic pit jack with low-noise oil-immersed units and automatic electric control
  • Up and down control via separate push button
  • Adjustable fine tuning of downward speed for the utmost safety during difficult assembly work


Design:

  • For precise movement, the pit jack is rail-guided at the top edge of the pit
  • Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
  • Long total stroke of 750 mm to reach high-up units
  • The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
  • Alternatively, a straight S carriage can be used too
  • Variable modular carriage system for various pit widths (700 - 1200 mm) in conjunction with different roller versions and clearance degrees for adapting to work pit circumstances
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with electric automatic control system
  • Deep-drawn P carriage and rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions
Product drawings

Technical Data

Technical data:

Load capacity (CE)16,500 kg
Stroke distance750 mm
Lifting levels1
Min. pick-up height from roller slide rail- 68 mm
Pit jack depth for roller slide rail1063 mm
Max. lifting height above roller slide rail681 mm
Slide rail width inner dimensions700 – 1200 mm
Carraige adjustable range140 mm
Roller rest width40 mm
Roller rest incline8 % / 4.6°
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)80 (95) mm
Mount diameter inside/outside45/90 mm
Piston rod diameter90 mm
Cable length5 m
Drive power2.5 kW
gG fuse16 A
Power supply3/N/PE 400 V 50 Hz
Oil quantity/quality14.5 l / HLP-D 22
DriveElectrohydraulic
Operating pressure254 bar
Weight277 kg
