product details / scope of delivery

  • Very smooth running due to electro-mechanical drive system
  • High efficiency thanks to smooth-running, low-maintenance ball screw
  • 5-year warrantee for entire spindle drive
  • Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
  • Lifting columns can be moved conveniently and easily thanks to hydraulic dolly at each column
  • Precision-height positioning without overrun thanks to high-quality worm gear motor
  • Lifting carriages with fixed holder
  • Overhead drive unit creates even more space in the work area

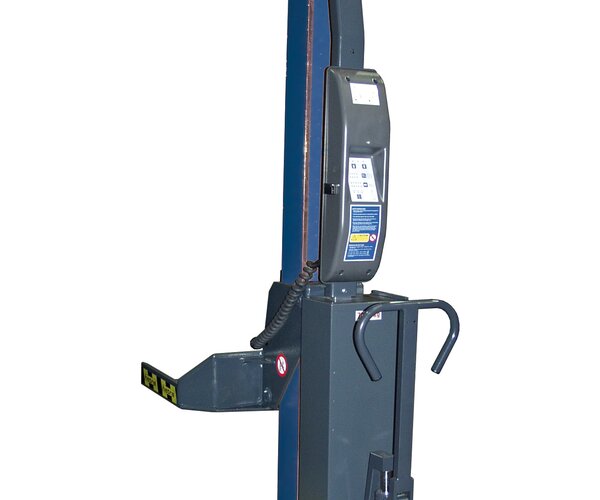

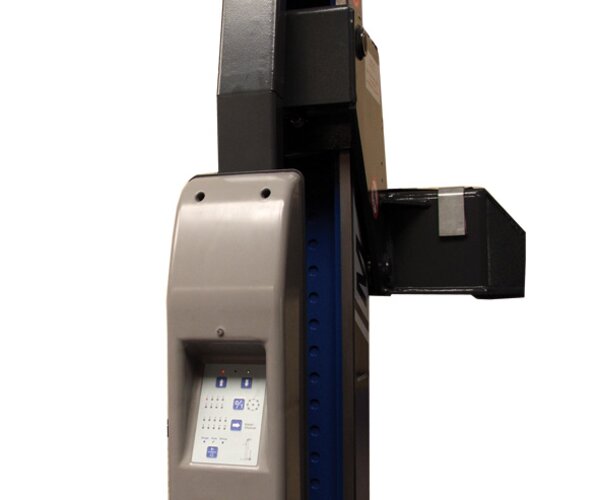

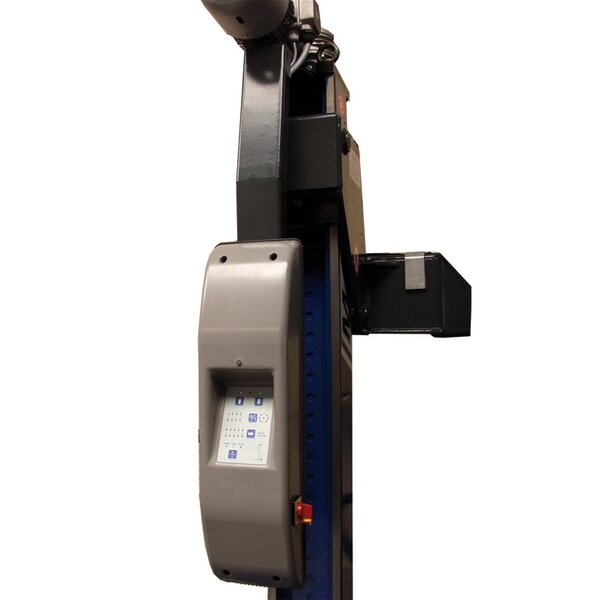

  • Workshop-robust and splash-proof control unit
  • Wear-free and easy-to-use membrane keypad


  • Flexible column positioning thanks to battery power supply (4 x 12 V), guaranteeing suitability across all vehicle

categories

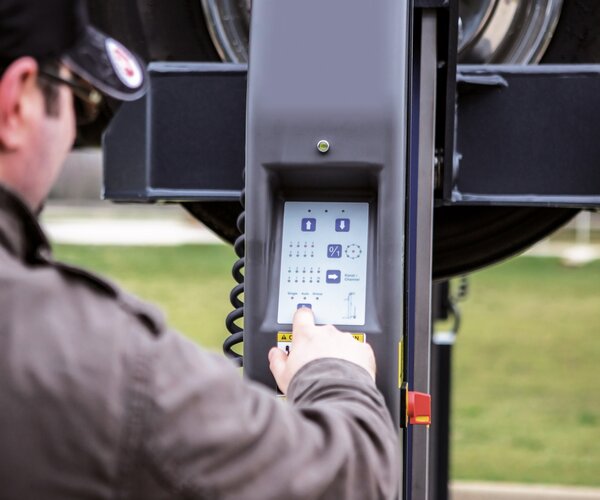

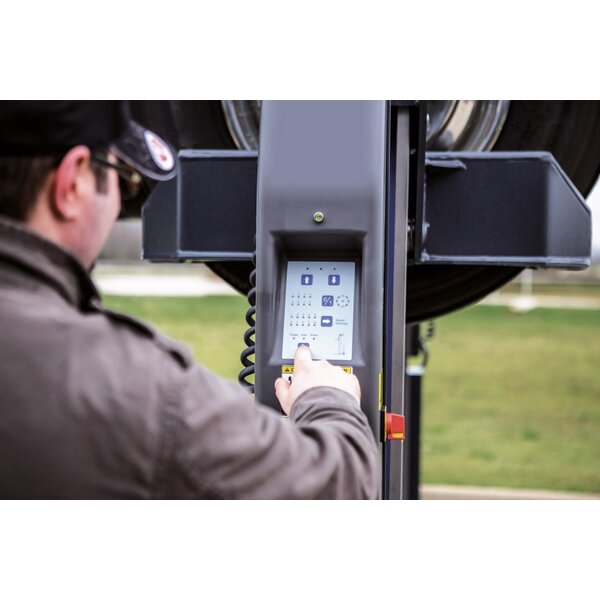

  • User convenience with panel operator controls on each individual column
  • High level of flexibility in use due to different operating modes
  • Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
  • Microprocessor control and wireless monitoring of movement synchronisation and all safety functions
  • Utmost safety thanks to mechanically independent locking device
  • Simple emergency lowering for power failure included as standard

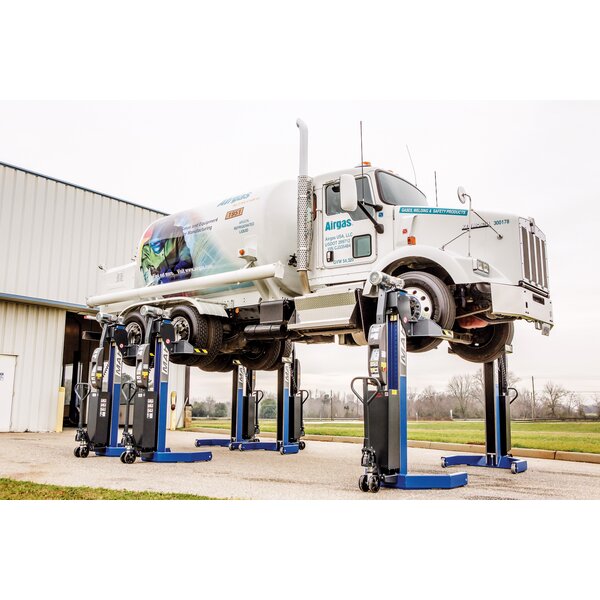

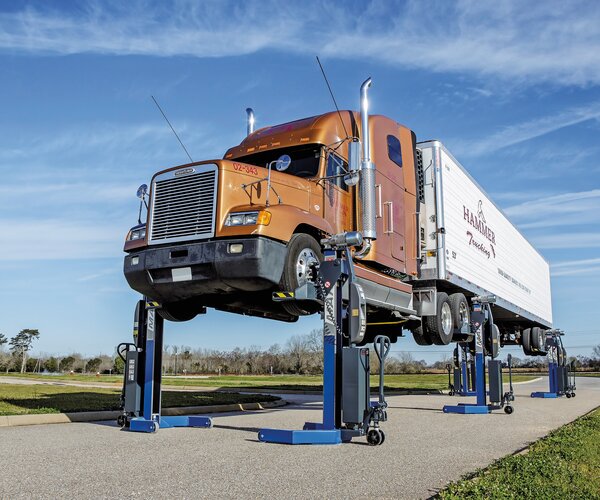

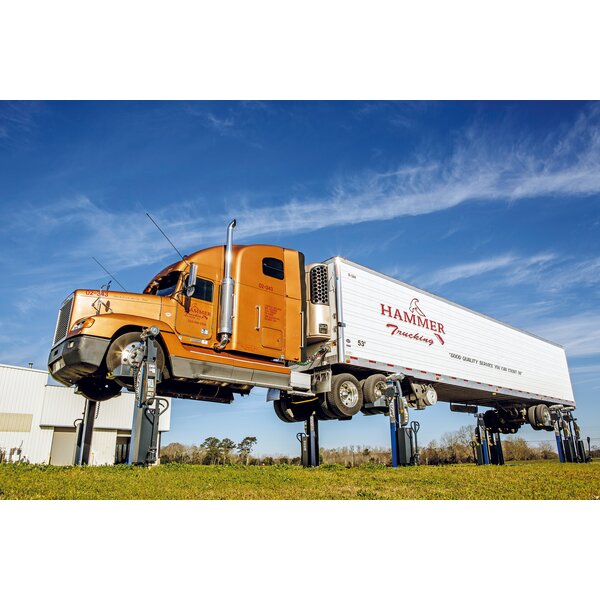

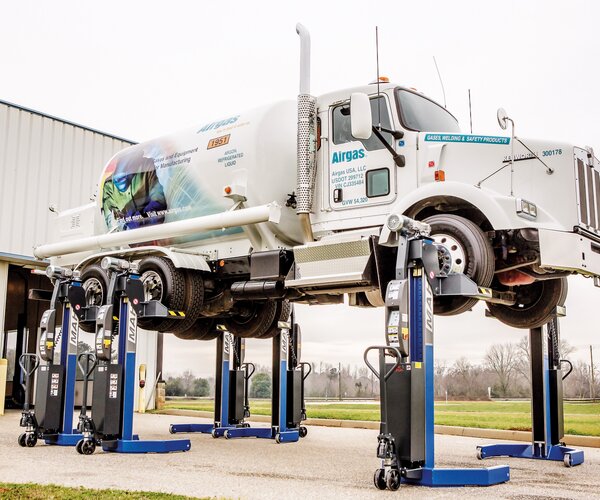

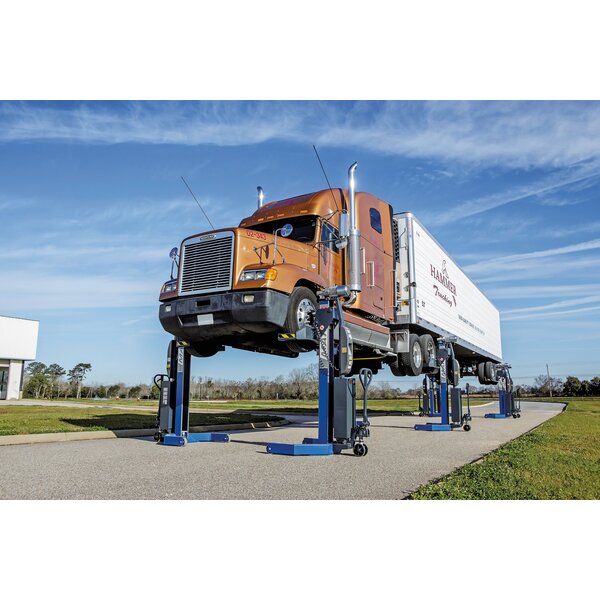

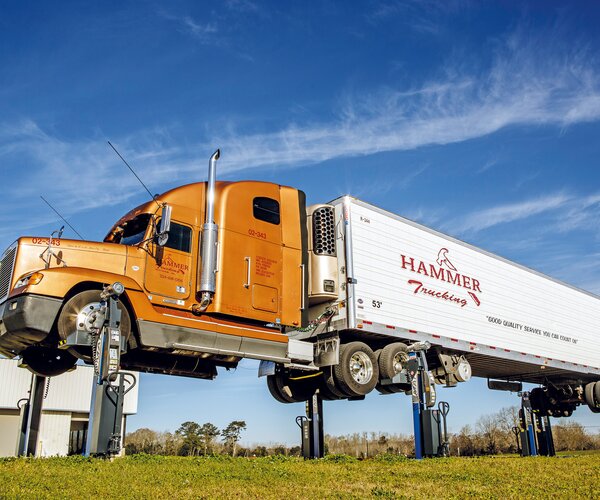

  • System can easily be expanded with up to eight columns

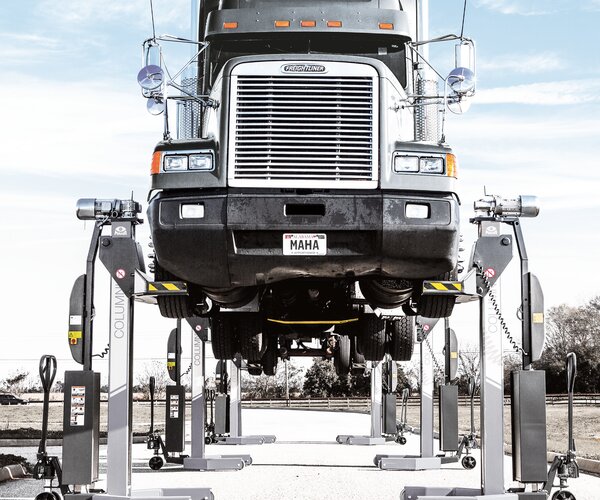

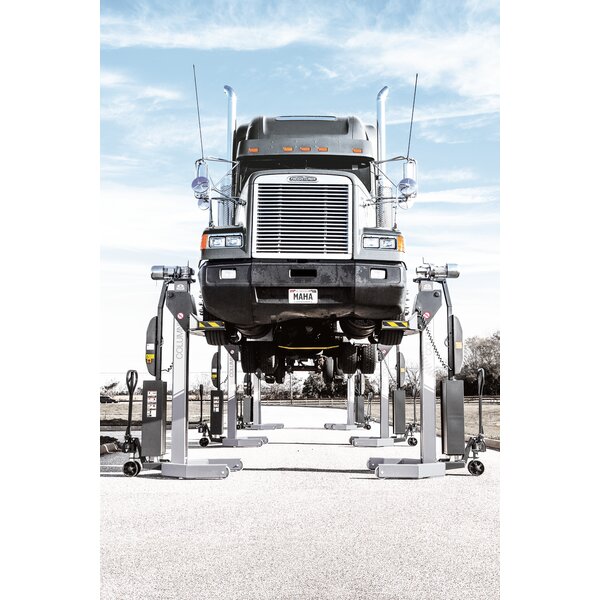

  • Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
  • High-quality powder coating:
    • Window Grey, RAL 7040 (Columns)
    • Anthracite, Grey RAL 7016 (Lifting carriages)


Scope of delivery:

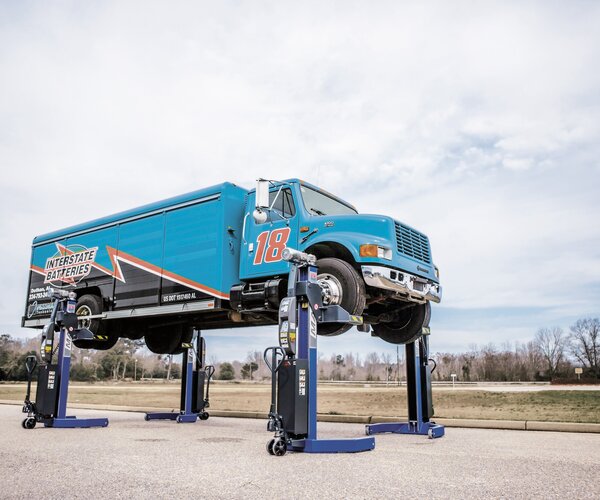

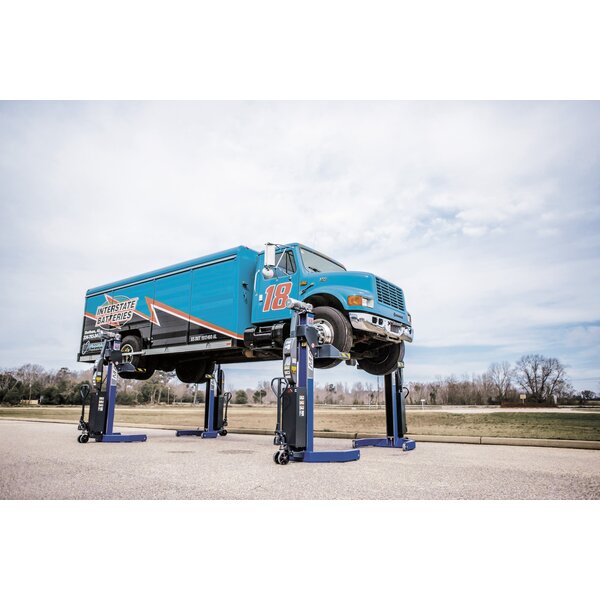

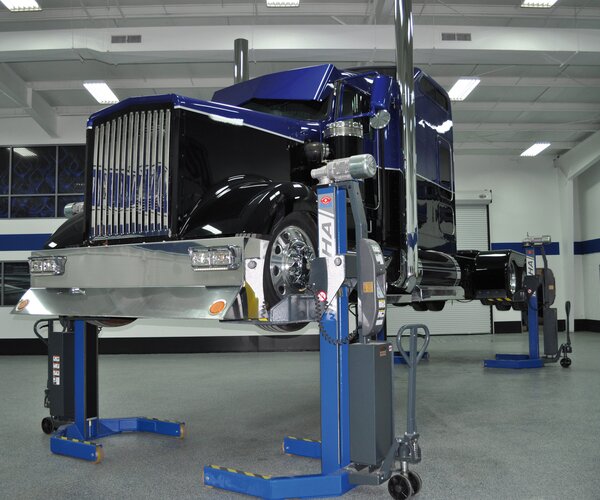

  • 4 individual mobile columns
  • 4 hydraulic dollies

Downloads

Brochures

Brochures
Technical Datasheet

Further Technical Documentation

Technical Data

Technical data:

Load capacity CE per column7500 kg
Drive power per column1.5 kW
Weight per column545 kg
Lifting distance1750 mm
Raising/lowering time113 s
Tyre diameter min. - max.850 - 1250 mm
Voltage for charger230 V
Lifting cycles partial load (3500 kg)35
Lifting cycles full load25
Protection ratingIP 54
