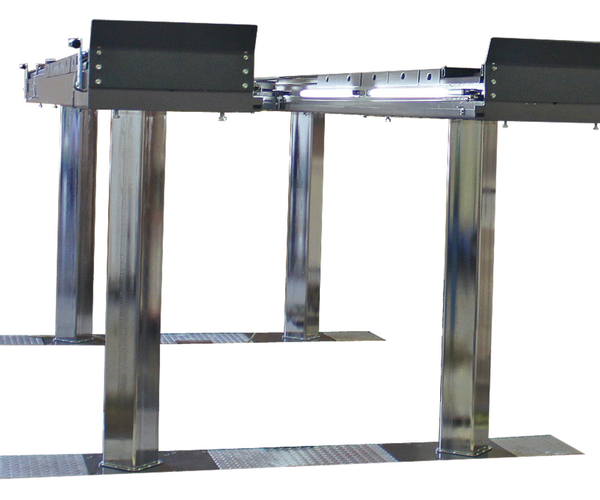

Four-post in-floor lift with driving platforms for cars

Description of driving platform:

  • Driving platform length 4400 mm ideal for cars and small transporters
  • Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
  • Optional conversion to chassis measurement lift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and Displacement device with latch rail
  • Optionally prepared for wheel-free jack and level driving platforms with levelling plate sets
  • A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
  • Optional driving platform coating with granulate coating
  • Additional corrosion-resistant treatment in the seam region and body cavity-sealing increases the service life
  • Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
  • All cables are protected inside the SQUARE post
  • Optional, no-dazzle rotatable LED lighting
  • Various assembly variants for optimum use:
    • Driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
    • Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
    • Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
  • Runways and ground levelling pre-equipped for the use of an optional axle lift
  • Pinch point and shear point protection thanks to CE stop

SQUARE lift unit:

  • Outstanding rigidity and optimum safety thanks to torsion-resistant square post
  • Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
  • Electronic lift control with no-contact, wear-free limit switches and visual error display
  • Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust, low-maintenance post design
  • Protected internal hydraulic safety cylinder guarantee lengthy service life
  • Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
  • High lifting/lowering speeds are guaranteed (max. 38/38 s)
  • Lift system with synchronisation for electronic synchronism of the front and rear piston couple guarantees optimum precision of the front and rear piston couple
  • Battery-operated emergency lowering
  • Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system

Scope of delivery:

  • Driving platform 4400 mm powder-coated anthracite (RAL 7016)
  • Lift unit with hydraulic assembly
  • Ramps and drive-on plates
  • Rapid-action compressed-air coupling mounted on driving platform
  • Wiring and mounting material
  • Installation box/installation frame not included in delivery
  • Emergency DOWN cable for connection to switch box
  • Control unit with 4 x 10 m control cables (flexible oil cables)
  • Lockable master switch
  • Operating manual and test log
  • EC Declaration of Conformity CE


Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Load capacity CE6500 kg
Dimensions of driving
platform (L x W x H)4400 x 650 x 175 mm
Inner drive-through width848 mm
Total dimensions (L x W x H)5758 x 2245 x 175 mm
Max. lifting height2050 mm
Post dimensions, square180 mm
Post spacing1580 mm
Post axle spacing in driving direction3400 mm
Installation depth2382 mm
Lifting/lowering time depending on loadapprox. 38/38 s
Hydraulic oil volume (not included)approx. 56 l
Operating pressure180 bar
Control unit (H x W x D)600 x 400 x 150 mm
Drive power2 × 3.0 kW
Fuse gG25 A
Power supply3/N/PE 400 V 50 Hz
