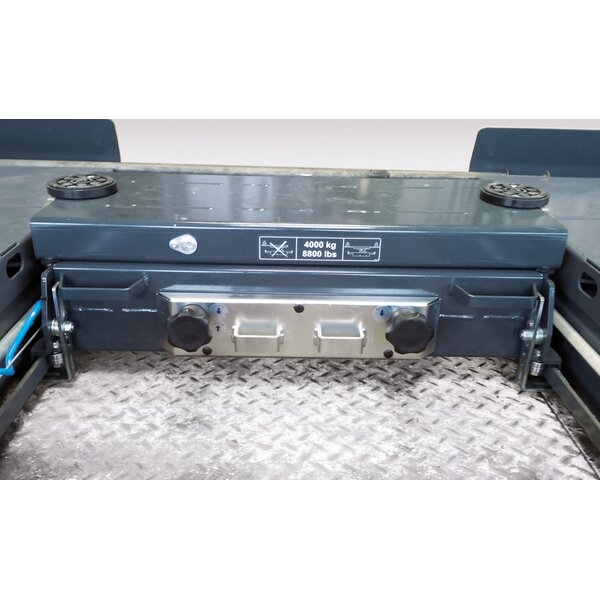

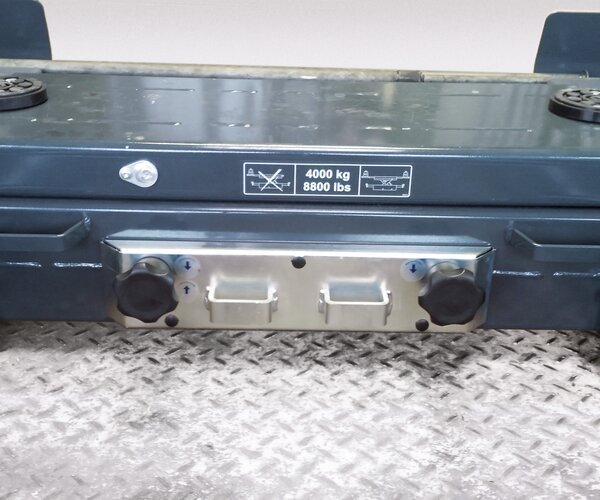

product details / scope of delivery

Powder coating in RAL 7016, anthracite
incl. carriage
incl. air supply set (spiral hose, guide rope)
incl. 2 120 mm rubber discs
incl. 2 adapter sockets for rubber discs
incl. 3 lift extenders measuring 50 / 100 / 200 mm

Downloads

Brochures

Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Load capacity4000 kg at 8.5 bar
Min. / max. operating pressure8.5 bar / 12 bar
Minimum air quantity500 l/min
Stroke (effective stroke)250 mm
Extension length796 - 1650 mm
