Description:

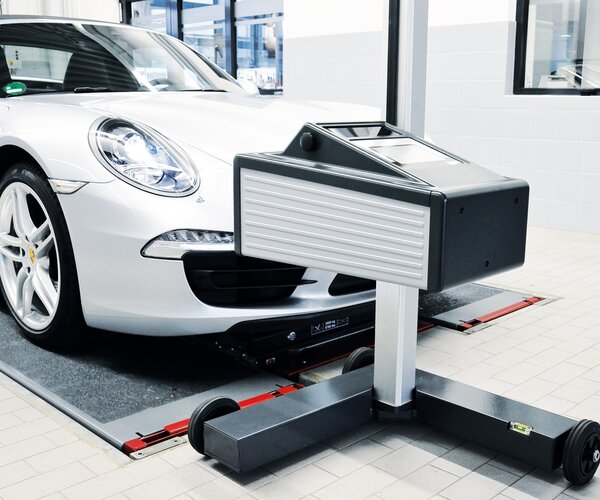

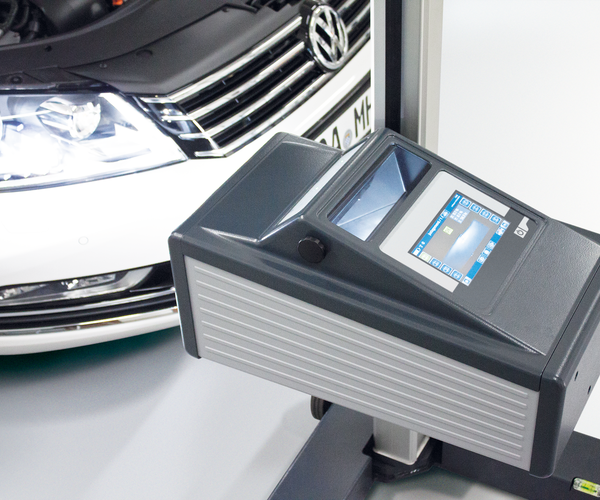

  • Digital device for quick and objective testing and adjustment of vehicle headlights, taking into account statutory limits and OEM guidelines
  • Electronic levelling system to compensate for unevenness in the floor at the headlight tester installation site

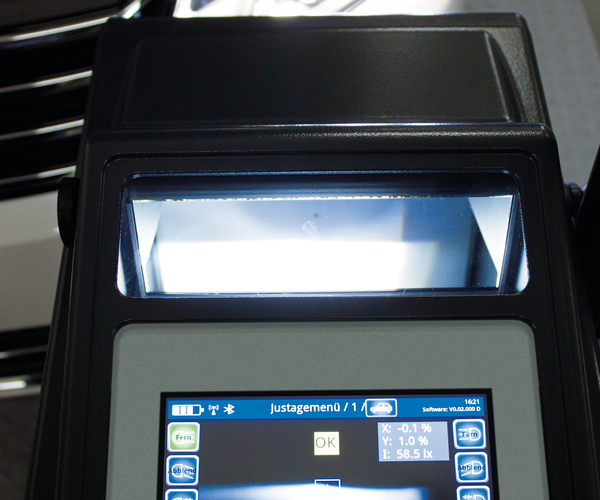

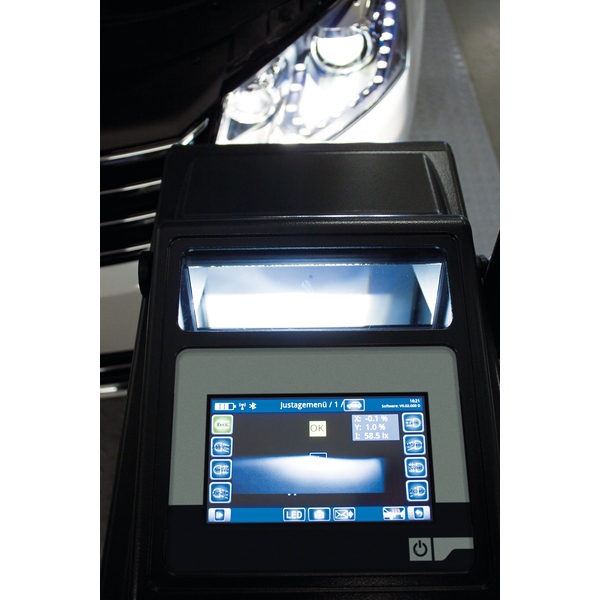

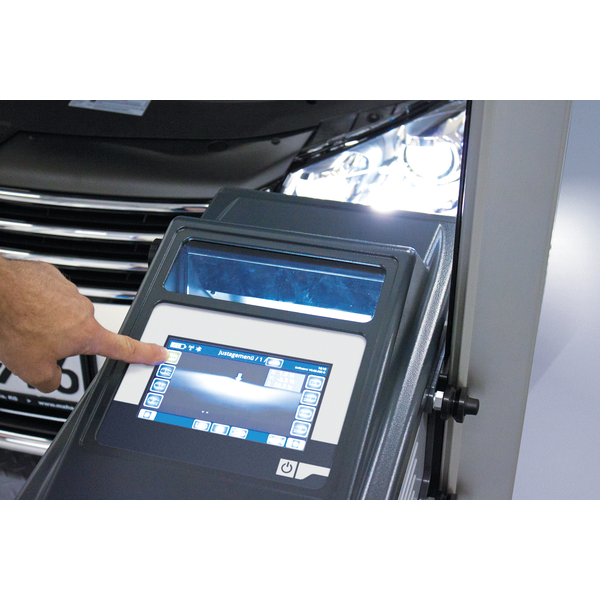

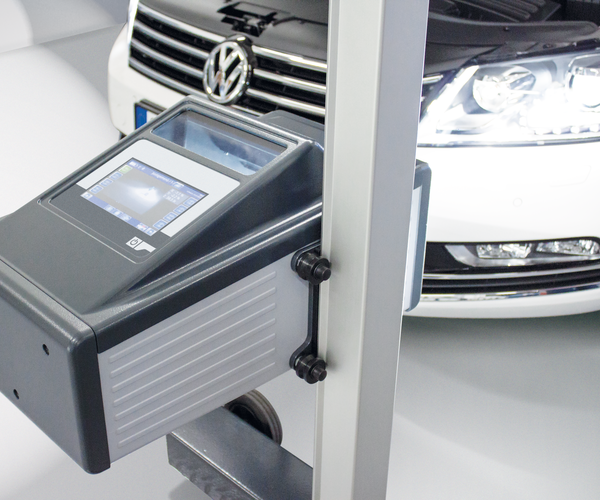

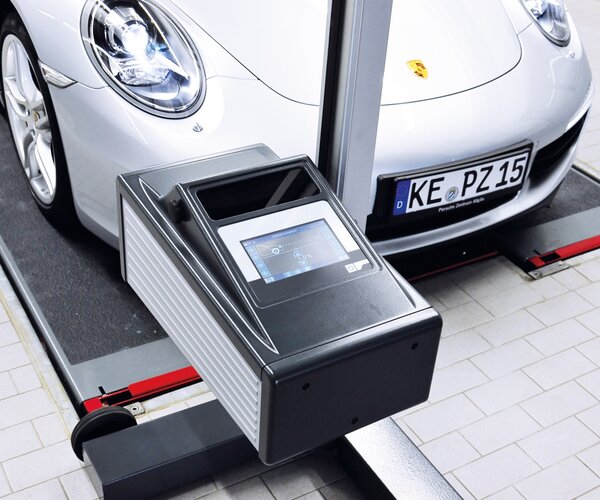

  • 7" touch screen for menu navigation and display of measurement values
  • High dynamic range CMOS camera for capturing and digitising the headlight projection
  • Processor-supported unit control incl. flash memory
  • Digital analysis with evaluation of results
  • Optional interface for transmission of measurements to a PC
  • Powerful battery for cable-free long-term use

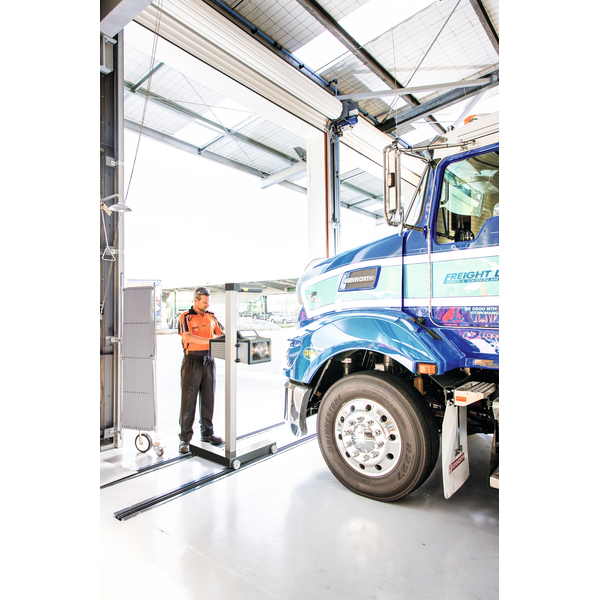

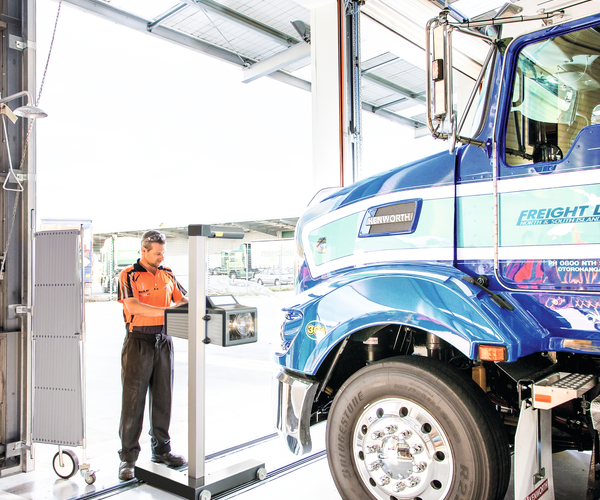

  • Robust construction, also suitable for test lanes
  • Rotatable mirror for device alignment to vehicle

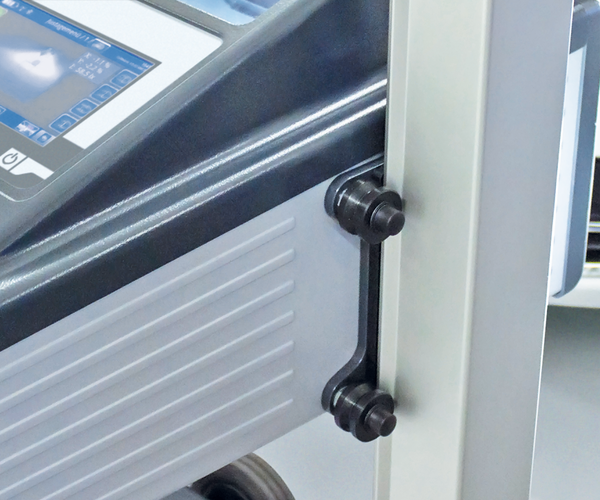

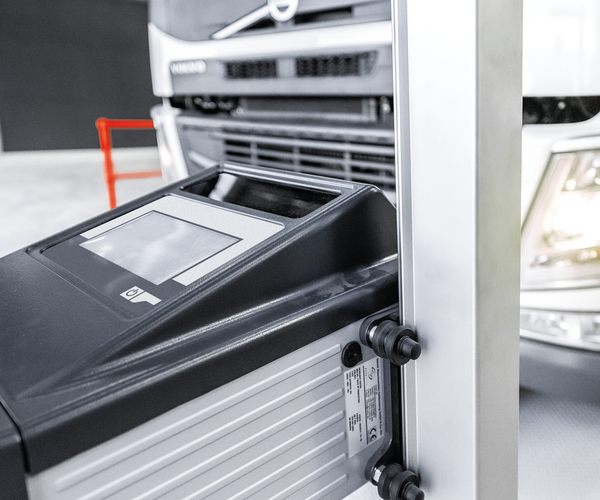

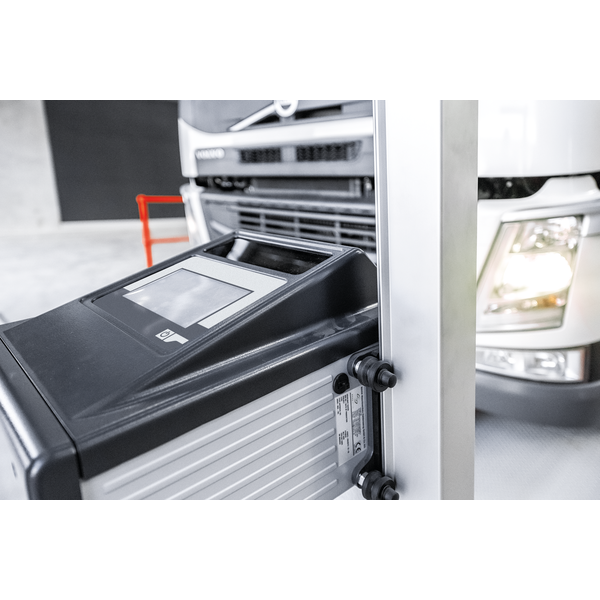

  • Automatic latching of the light collecting box to the precision aluminium guide column facilitates handling and optimises reproducibility
  • Extremely thin Fresnel lens made from material with optimised refractive index for suppressing blue and red fringing increases measurement accuracy significantly

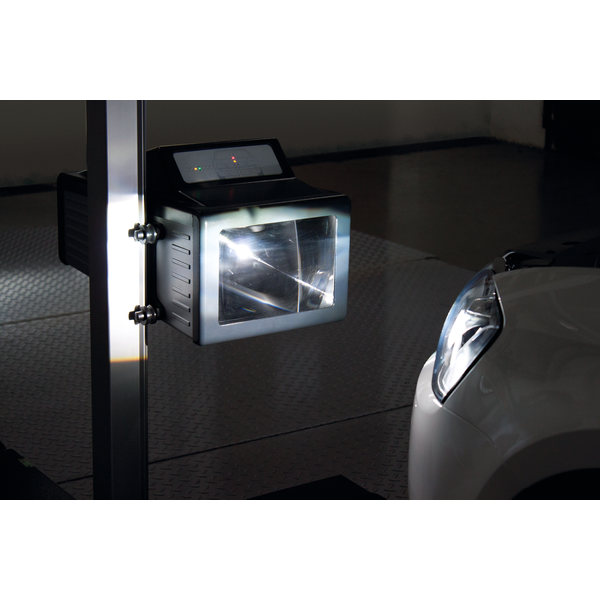

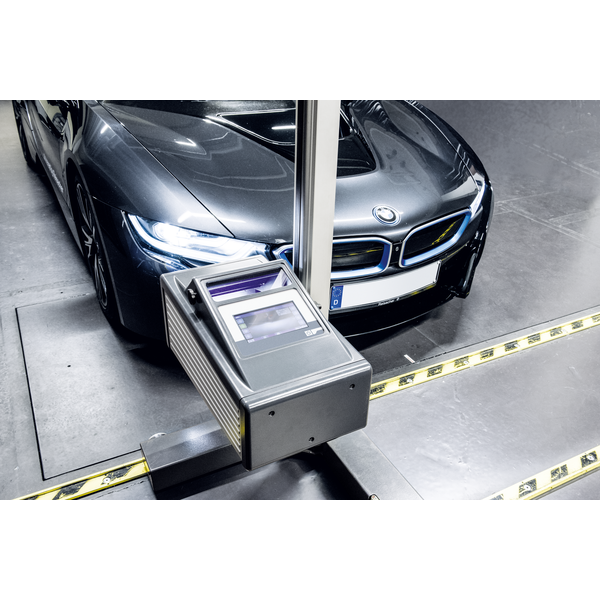

  • Large Fresnel lens for easy positioning in front of the headlights helps speed up the entire set-up process
  • Anodised heat deflection sheet to prevent overheating as a result of direct sunlight even without use of the device covering hood

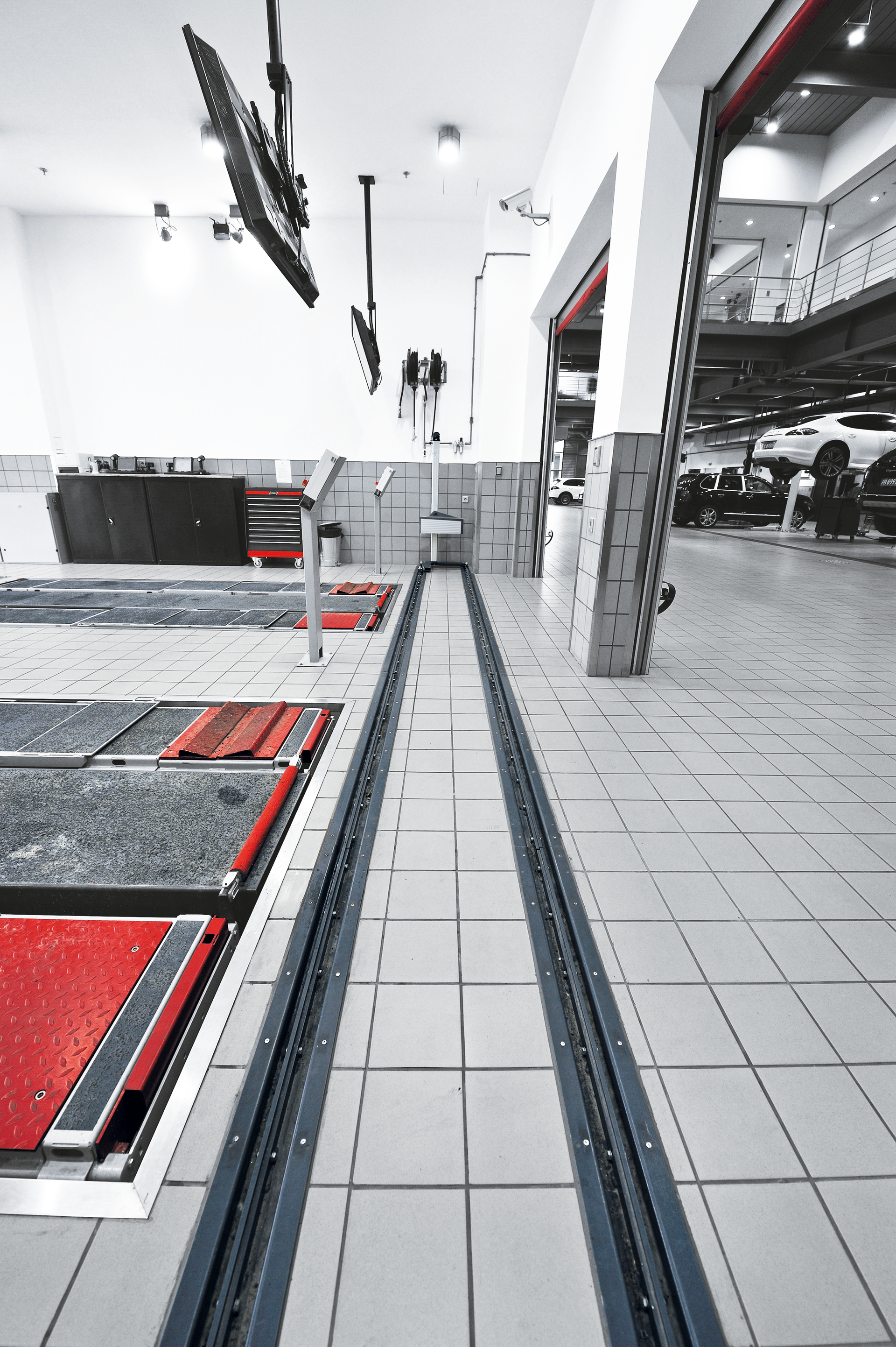

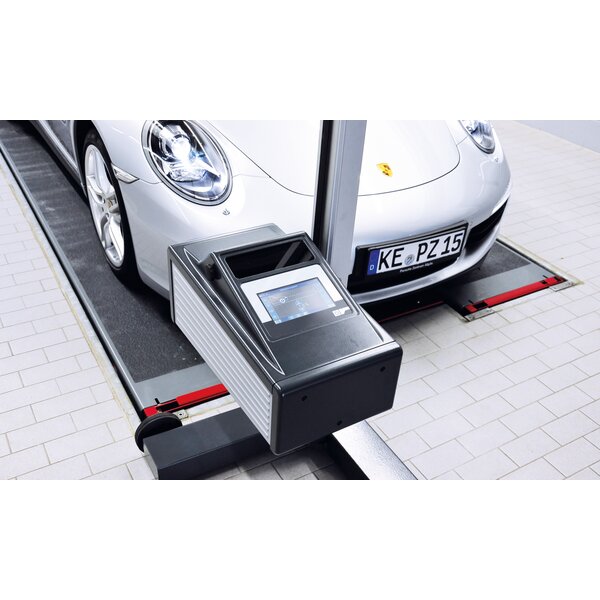

  • Pre-configured as standard for use on our optional semicircular profile rail stainless steel, so that equipment runs in straight line after alignment

Downloads

Brochures

Brochures
Technical Datasheet

Further Technical Documentation

User Manuals
Technical information

Technical Data

Technical Data:

Measuring range:
Above hotspot0 - 800 mm/10 m (0-8%)
Above pitch angle0 - 300 mm/10 m (0-3%)
Underneath0 - 700 mm/10 m (0-7%)
Left0 - 1000 mm/10 m (0-10%)
Right0 - 1000 mm/10 m (0-10%)
Light intensity0 - 125000 cd
Illuminance0 - 200 lx
Measurement distance100 - 500 mm
Adjustment track lens centre over floor240 - 1500 mm
Deviation of intensity+/-5%
Deviation from an axle+/- 5'
Temperature range+5 - +40°C
Relative humidity20 - 80 %
Power supply (mains adapter)1/N/PE 100-240 V 50/60 Hz
Dimensions (H x W x D)1770 x 655 x 720 mm
