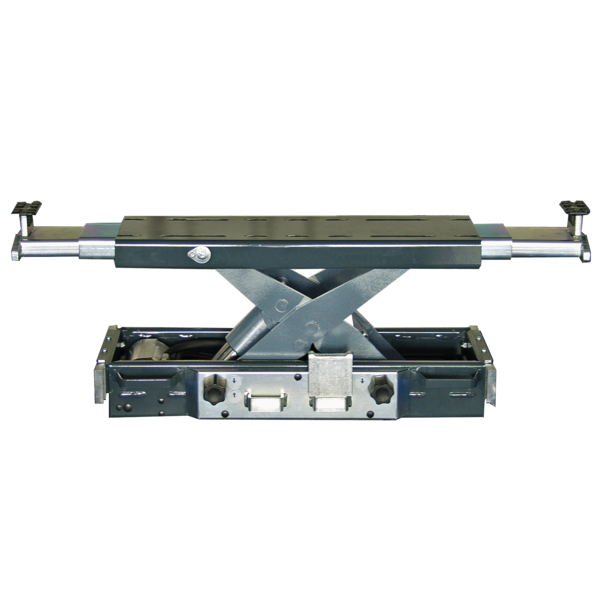

product details / scope of delivery

with increased cross-beam extension length (925 - 1755 mm)
Max. support length 1630 mm in conjunction with
support discs (VZ 975644)
Powder coating in RAL 7016, anthracite
incl. carriage
incl. air supply set (spiral hose, guide rope)
incl. 2 rubber pads for lifting brackets
incl. 3 lift extenders measuring 10 / 45 / 85 mm

  • Minimum clear distance between runway

and lift of 950 mm is required! -

Downloads

Brochures

Technical Datasheet

Additional Technical Documentation

Operating Instructions

Technical Data

Load capacity2600 kg at 8.5 bar
Min. / max. operating pressure8.5 bar / 12 bar
Minimum air quantity500 l/min
Stroke (effective stroke)250 mm
Extension length925 - 1755 mm
Max. protrusion above runway70 mm
