Description:

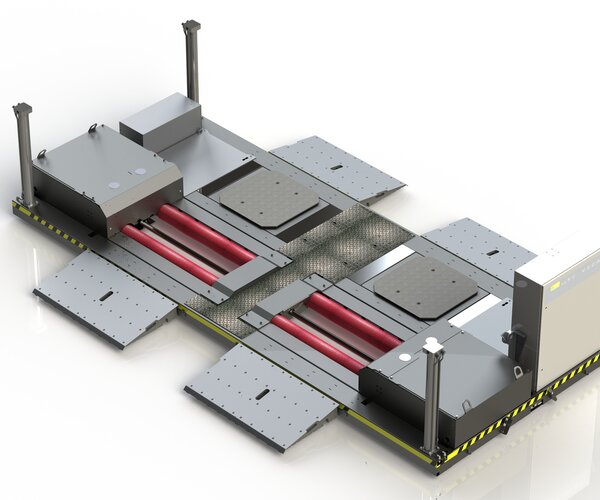

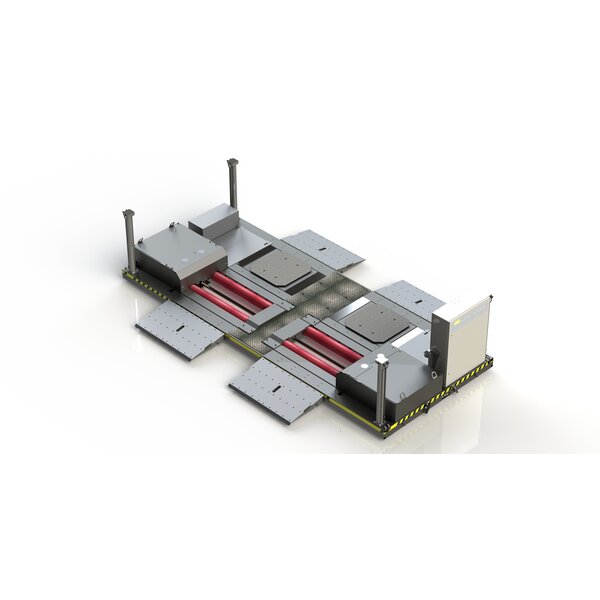

Completely self-sufficient, mobile test lane system
Digital above-floor roller brake tester for vans and trucks
of up to 18 t axle load with 2 x 9 kW drive motors
Design:
- Transportable on optional car trailer with GVW of 3.5 t
- Self-supporting steel frame with electrohydraulic lifting device
- Transport and shipment possible in 20-foot container
- Prepared for optional axle play tester C_MTL LMS 18.0
- High-quality powder coating: anthracite grey, RAL 7016
Scope of delivery:
- Integrated, mobile hydraulic system for pick-up by a car trailer
- Switch cabinet with integrated control
- Roller set M 18.0 W301 with integrated interface module
- Drive-on ramps flexibly removable from brake tester
- WiFi access point for integrating smart devices into CONNECT
- Radio remote control, model: C_RECO S
- Radio receiver for radio pressure converter (VZ 955314)
- Cable remote control for emergency lowering of hydraulic system
Datos técnicos
Technical data:
Brake tester:
| Axle load (traversable) | ............... 18000 kg |
| Track min. | 750 mm |
| Track max. | 3010 mm |
| Drive power | 2 x 9 kW |
| Test speed | 2.4 km/h |
| Display range | 0-45.5 kN |
| Technical brake force limit | 30 kN |
| Roller diameter | 154 mm |
| Drive-through height | 196 mm |
| Roller length | 1190 mm |
| Roller axle distance | 450 mm |
| Power supply | 3 x 400 V/N/PE 50 Hz |
| Fuse | 63 A slow |
| Connector plug | CEE 63 A / 6H/5p |
Hydraulic system:
| Hydraulic oil qty. | 20 l |
| Operating pressure max. | 120 bar |
| Nominal power | 2.5 kW |
Weight (option-dependent)
| Full equipment | 2750 kg |
| (incl. ramps and cables, w/o trailer and tarpaulin) | |
| Equipment w/o LMS | 2450 kg |
| (incl. ramps and cables, w/o trailer and tarpaulin) | |
| 8 Ramps | 100 kg |
| Tarpaulin | 25 kg |
| Trailer | 640 kg |
| Max. weight | 3415 kg |
Dimensions
| Frame/test system (transportable) | |
| (L x W x H) | 5200 x 2200 x 1200 mm |
| Frame/test system, with extended cylinders (H) | 2010 mm |
| Frame/test system (in set-up condition) (W) | 3460 mm |
| with trailer (L x W x H) | 6800 x 2150 x 1800 mm |
| Ramp (8 required) (L x W x H) | 655 x 575 x 144 mm |
